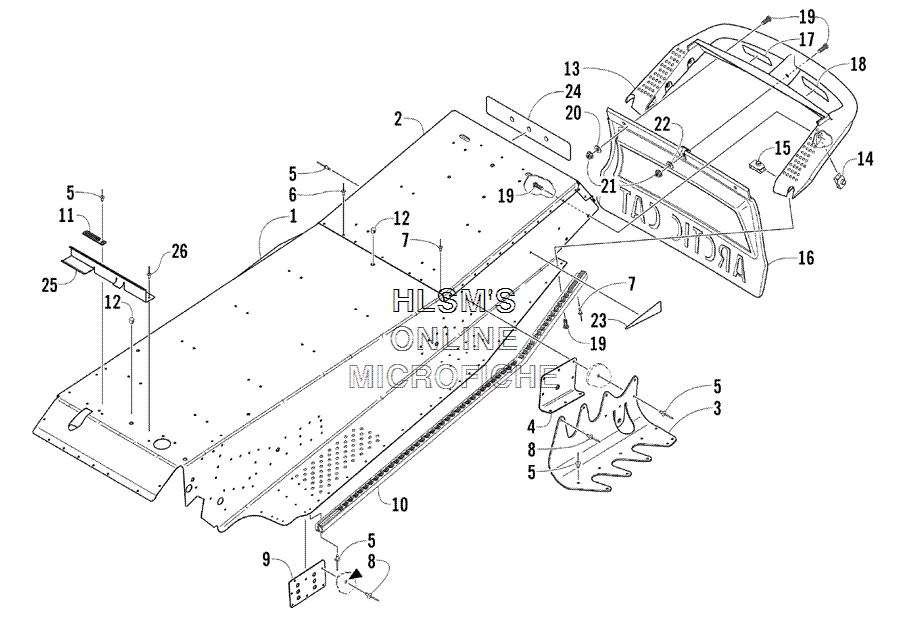

TUNNEL AND REAR BUMPER для Arctic Cat T660 Turbo ST EFI EARLY BUILD - 2005 года выпуска
-
№АртикулНазвание
-
11718-736 TUNNEL ASSY. (INC. 2, 8)TUNNEL ASSY. (INC. 2, 8)
-
22606-867 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
32606-238 BRACKET, MOUNTING (REAR) SUSPENSION (RIGHT)BRACKET, MOUNTING (REAR) SUSPENSION (RIGHT)
-
32606-239 BRACKET, MOUNTING (REAR) SUSPENSION (LEFT)BRACKET, MOUNTING (REAR) SUSPENSION (LEFT)
-
41706-854 PLATE, BACKING (REAR) SUSPENSIONPLATE, BACKING (REAR) SUSPENSION
-
50123-418 RIVET, SOLID ALUM-.156 X.312RIVET, SOLID ALUM-.156 X.312
-
50623-806 RIVET, SOLID-.156 X.437-ALUMRIVET, SOLID-.156 X.437-ALUM
-
58060-506 RIVET, BLIND-DH SS54 BLKRIVET, BLIND-DH SS54 BLK
-
68060-684 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
78060-484 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
80623-072 RIVET, SOLID ALUM-156 X370RIVET, SOLID ALUM-156 X370
-
92706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
102606-426 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
102606-425 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131606-200 BUMPER (REAR)BUMPER (REAR)
-
140623-771 NUT, U-1/4-20 (.50 X .25 PANEL)NUT, U-1/4-20 (.50 X .25 PANEL)
-
150623-427 NUT, U-1/4X20NUT, U-1/4X20
-
161606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
175611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
185611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
198017-580 SCREW, MACHINESCREW, MACHINE
-
200623-184 WASHER, FLAT 1/4 X 1.0 Z & YWASHER, FLAT 1/4 X 1.0 Z & Y
-
218048-366 NUT, HEX FLG-TOP LOCK 1/4-20 GRNUT, HEX FLG-TOP LOCK 1/4-20 GR
-
228050-217 WASHER, FLAT- 1/4 X .625 X .065WASHER, FLAT- 1/4 X .625 X .065
-
236611-012 DECAL, REFLECTOR (RED) (RIGHT)DECAL, REFLECTOR (RED) (RIGHT)
-
236611-013 DECAL, REFLECTOR (RED) (RIGHT)DECAL, REFLECTOR (RED) (RIGHT)
-
246611-436 DECAL, TUNNELDECAL, TUNNEL
-
250607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
260623-166 RIVET, CHERRY-5/32 X 3/16RIVET, CHERRY-5/32 X 3/16
