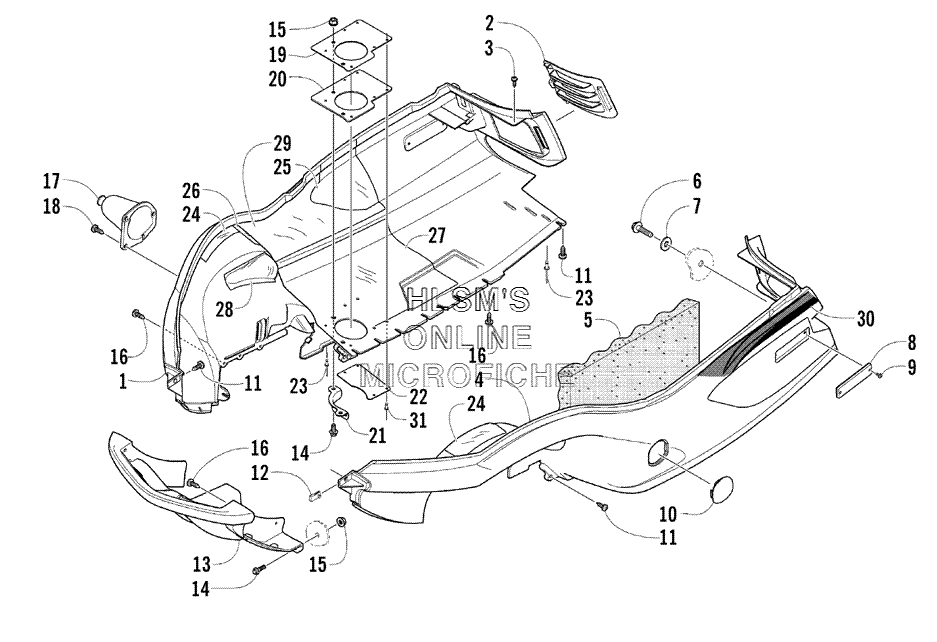

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat T660 Turbo ST (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
12706-479 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
21606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
30623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
42706-504 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
80606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
101606-767 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
110623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120623-427 NUT, UNUT, U
-
133606-971 BUMPER (FRONT)BUMPER (FRONT)
-
148020-040 SCREW, CAPSCREW, CAP
-
158048-366 NUT, LOCKNUT, LOCK
-
161623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
170605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
180623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
191712-047 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
201612-870 BOOT, EXHAUSTBOOT, EXHAUST
-
210712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
221712-049 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
238061-508 RIVETRIVET
-
240619-206 TAPE, FOILTAPE, FOIL
-
252606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
262606-387 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
273606-450 FOIL, PROTECTIVE (LOWER)FOIL, PROTECTIVE (LOWER)
-
283606-451 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
292606-376 FOIL, PROTECTIVE (UPPER/MIDDLE)FOIL, PROTECTIVE (UPPER/MIDDLE)
-
306611-754 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
306611-755 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
318060-510 RIVETRIVET
