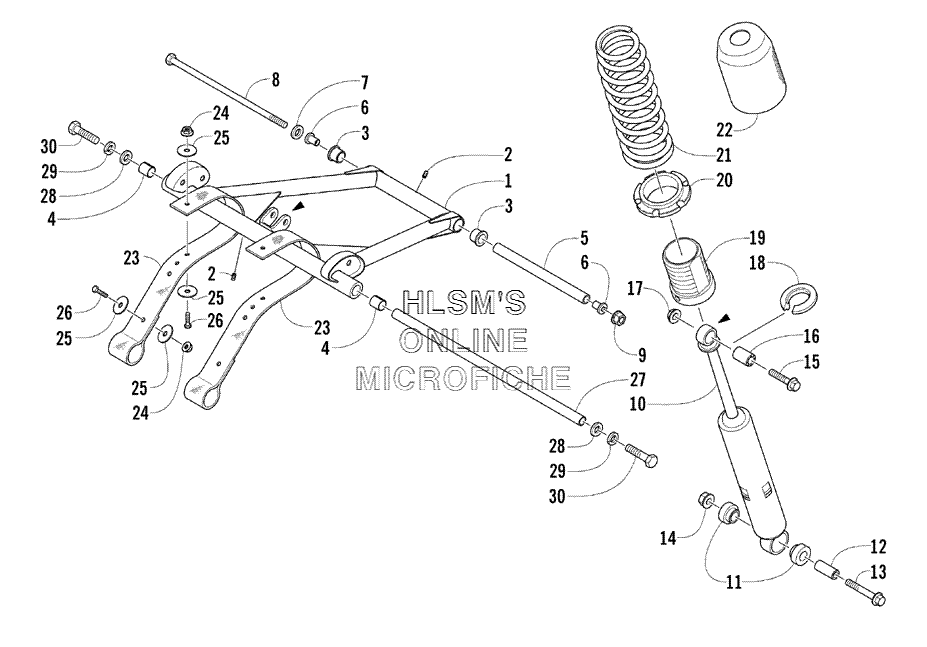

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat T660 Turbo - 2005 года выпуска
-
№АртикулНазвание
-
11704-335 ARM SUSPENSION (FRONT) (INC. 2, 4)ARM SUSPENSION (FRONT) (INC. 2, 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30104-386 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
40603-083 BEARINGBEARING
-
50604-194 TUBE, AXLETUBE, AXLE
-
60603-061 AXLE, SERRATEDAXLE, SERRATED
-
70623-664 WASHERWASHER
-
81623-037 SCREW, CAPSCREW, CAP
-
98047-490 NUT, LOCKNUT, LOCK
-
101604-369 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
111604-384 BUSHING, SHOCKBUSHING, SHOCK
-
121604-329 AXLE, PIVOT, SHOCKAXLE, PIVOT, SHOCK
-
138020-228 SCREW, CAPSCREW, CAP
-
148048-486 NUT, LOCKNUT, LOCK
-
158020-226 SCREW, CAPSCREW, CAP
-
160603-030 AXLE, SERRATEDAXLE, SERRATED
-
178041-486 NUT, LOCKNUT, LOCK
-
181603-889 RETAINER, SPRINGRETAINER, SPRING
-
190603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
200603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
210603-860 SPRING, COMPRESSIONSPRING, COMPRESSION
-
220604-590 COVER, SHOCKCOVER, SHOCK
-
232604-305 STRAP, LIMITERSTRAP, LIMITER
-
248047-366 NUT, LOCKNUT, LOCK
-
250623-184 WASHERWASHER
-
268002-043 SCREW, CAPSCREW, CAP
-
270114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
280623-044 WASHERWASHER
-
298051-277 WASHER, LOCKWASHER, LOCK
-
308002-224 SCREW, CAPSCREW, CAP
