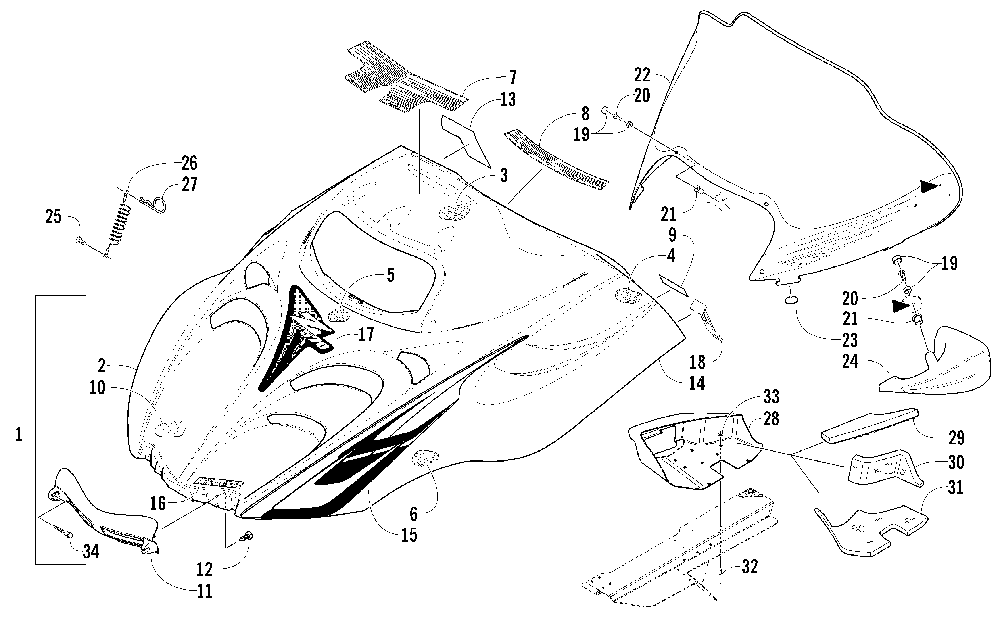

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 570 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11718-630 HOOD W/DECALS (INC. 2, 12 AND 14, 17)HOOD W/DECALS (INC. 2, 12 AND 14, 17)
-
21718-604 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-164 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-165 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
146611-102 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
146611-103 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
156611-086 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
156611-087 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
163611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
176611-101 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
181606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
210623-845 NUT, EXPANSIONNUT, EXPANSION
-
223606-500 WINDSHIELDWINDSHIELD
-
230616-032 O-RINGO-RING
-
250623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
262606-247 CABLE, HOODCABLE, HOOD
-
270623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
282606-370 DUCT, AIR, OUTERDUCT, AIR, OUTER
-
290617-427 FOAM, AIR, OUTER DUCT, TOPFOAM, AIR, OUTER DUCT, TOP
-
300617-428 FOAM, AIR, OUTER DUCT, SIDEFOAM, AIR, OUTER DUCT, SIDE
-
310617-425 FOAM, AIR, OUTER DUCT, BOTTOMFOAM, AIR, OUTER DUCT, BOTTOM
-
328060-508 RIVETRIVET
-
330123-802 WASHERWASHER
-
341623-016 SCREW, MACHINESCREW, MACHINE
