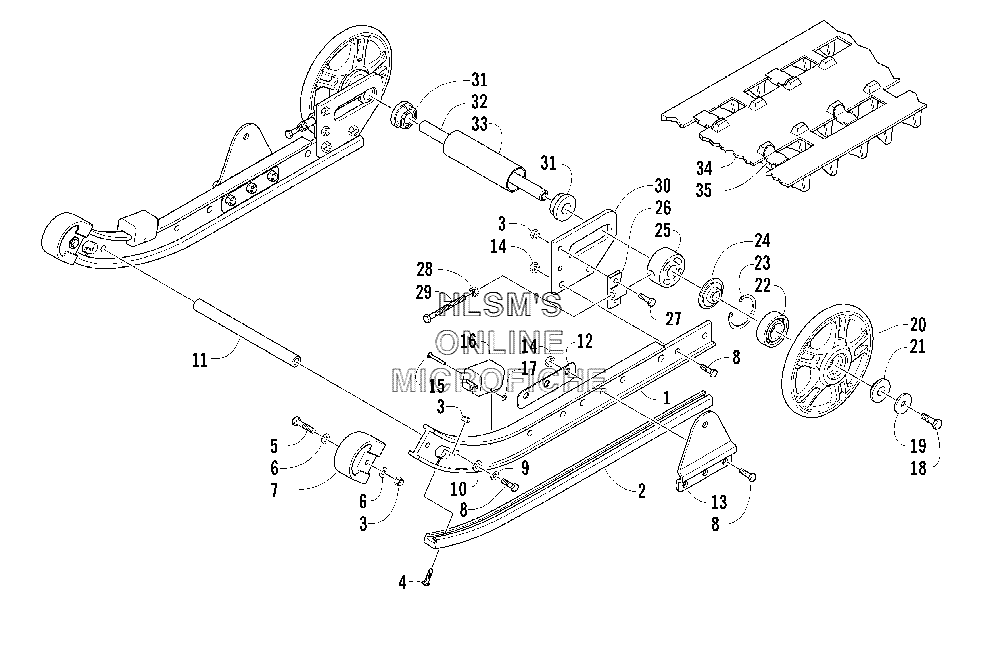

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat ZR 120 (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11604-705 RAIL, FORMEDRAIL, FORMED
-
21604-568 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
40123-869 SCREW, MACHINESCREW, MACHINE
-
58002-044 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
70604-231 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88002-131 SCREW, CAPSCREW, CAP
-
98051-247 WASHER, LOCKWASHER, LOCK
-
108050-247 WASHERWASHER
-
111604-566 AXLE, CROSS, BRACEAXLE, CROSS, BRACE
-
120704-897 PLATE, BACKINGPLATE, BACKING
-
130704-896 BRACKET, SUPPORT, ARMBRACKET, SUPPORT, ARM
-
148040-426 NUT, LOCKNUT, LOCK
-
150123-767 RIVET, SOLIDRIVET, SOLID
-
160104-631 PAD, SHOCKPAD, SHOCK
-
170423-090 NUT, PRESSNUT, PRESS
-
188002-222 SCREW, CAPSCREW, CAP
-
190123-570 WASHERWASHER
-
202604-122 WHEEL, IDLER (REAR) (INC. 21, 24)WHEEL, IDLER (REAR) (INC. 21, 24)
-
211604-773 INSERT, IDLER WHEEL (OUTER)INSERT, IDLER WHEEL (OUTER)
-
220107-598 BEARINGBEARING
-
230123-798 RING, RETAININGRING, RETAINING
-
241604-772 INSERT, IDLER WHEEL (INNER)INSERT, IDLER WHEEL (INNER)
-
250604-165 BUSHING, IDLER WHEEL, ADJUSTMENT (REAR)BUSHING, IDLER WHEEL, ADJUSTMENT (REAR)
-
260604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
278002-041 SCREW, CAPSCREW, CAP
-
288042-486 NUTNUT
-
290124-310 SCREW, CAPSCREW, CAP
-
301604-661 HOUSING, AXLE (REAR)HOUSING, AXLE (REAR)
-
310604-968 BUSHING, SPACER, IDLER WHEEL (REAR)BUSHING, SPACER, IDLER WHEEL (REAR)
-
321604-562 AXLE, IDLER WHEEL (REAR)AXLE, IDLER WHEEL (REAR)
-
331604-563 SPACER, IDLER WHEEL (REAR)SPACER, IDLER WHEEL (REAR)
-
341602-015 TRACK ASSY (INC. 35)TRACK ASSY (INC. 35)
-
351602-079 CLIP, GUIDECLIP, GUIDE
-
357997-952 SKID FRAME ASSYSKID FRAME ASSY
