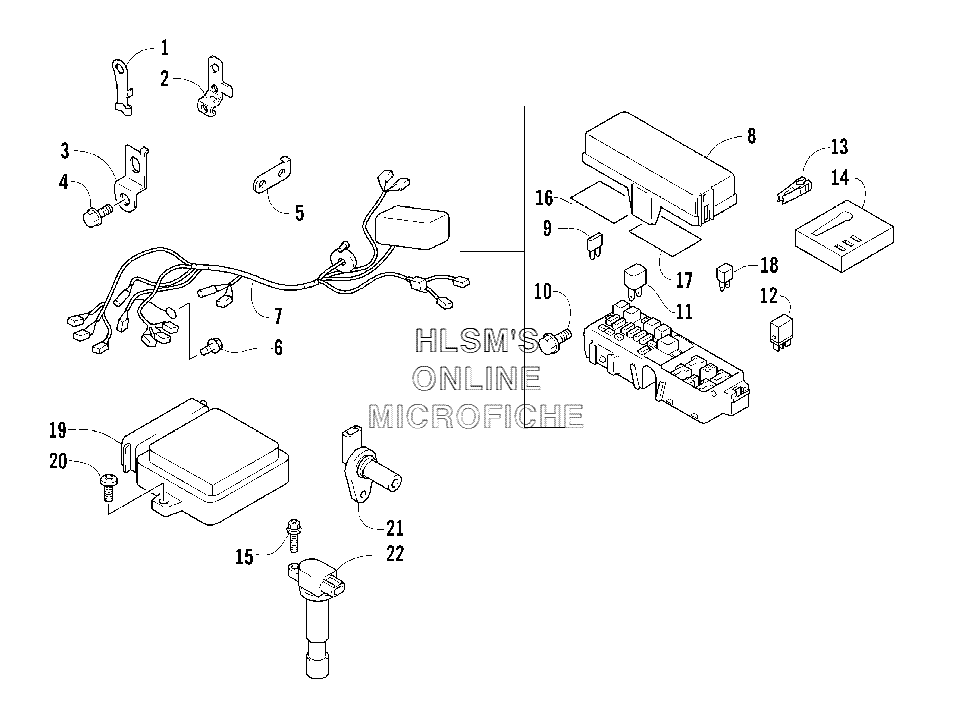

ELECTRICAL для Arctic Cat Bearcat WIDE TRACK Turbo INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
13006-290 CLAMP, OIL PRESSURE SWITCHCLAMP, OIL PRESSURE SWITCH
-
23006-287 BRACKET, CHAIN COVERBRACKET, CHAIN COVER
-
33006-609 BRACKET, COILBRACKET, COIL
-
43004-338 BOLTBOLT
-
53006-284 BRACKET, ENGINE HARNESSBRACKET, ENGINE HARNESS
-
63004-705 BOLT, GROUNDBOLT, GROUND
-
73007-035 HARNESS ASSY (INC. 8, 14)HARNESS ASSY (INC. 8, 14)
-
83006-288 COVER, FUSE BOXCOVER, FUSE BOX
-
93006-368 FUSE (15 AMP)FUSE (15 AMP)
-
93006-369 FUSE (30 AMP)FUSE (30 AMP)
-
103006-109 BOLTBOLT
-
113006-370 FUSE (80 AMP)FUSE (80 AMP)
-
123006-294 RELAYRELAY
-
133006-607 PULLER, FUSEPULLER, FUSE
-
143006-608 HOLDER, SPARE FUSEHOLDER, SPARE FUSE
-
153006-756 BOLTBOLT
-
165611-859 DECAL, FUSE BOXDECAL, FUSE BOX
-
175611-860 DECAL, FUSE BOXDECAL, FUSE BOX
-
193006-963 CONTROLLER, INJECTIONCONTROLLER, INJECTION
-
208476-625 SCREW, MACHINESCREW, MACHINE
-
213006-279 SENSOR, CAM POSITION, ASSYSENSOR, CAM POSITION, ASSY
-
223006-280 COIL, IGNITIONCOIL, IGNITION
