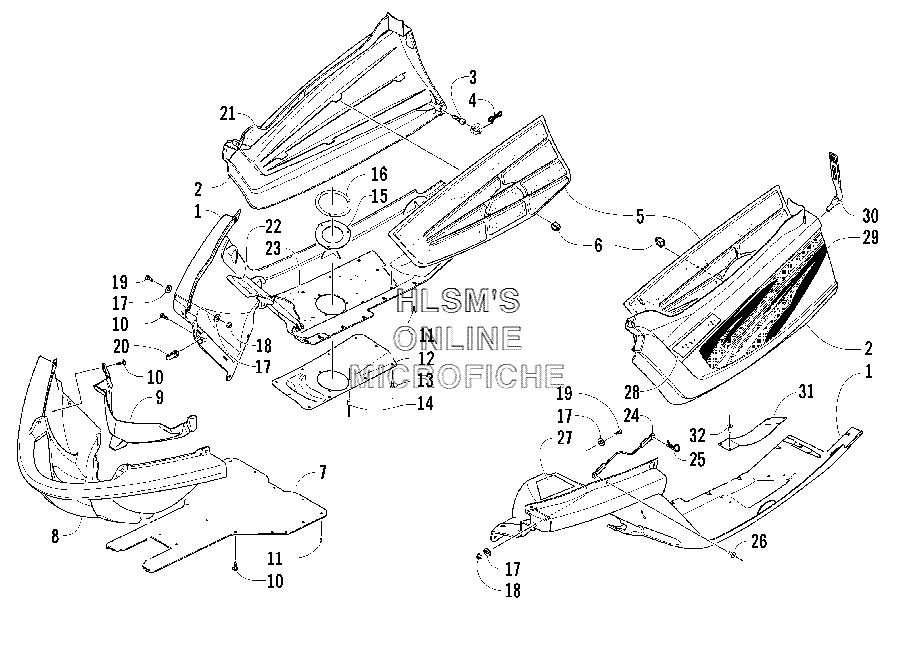

BELLY PAN ASSEMBLY для Arctic Cat Crossfire 600 EFI (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13706-294 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
13706-211 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
24606-258 PANEL, ACCESS (RIGHT)PANEL, ACCESS (RIGHT)
-
24606-259 PANEL, ACCESS (LEFT)PANEL, ACCESS (LEFT)
-
31623-531 SCREW, RETAINING, ACCESS PANELSCREW, RETAINING, ACCESS PANEL
-
41623-546 PIN, RETAININGPIN, RETAINING
-
50617-502 FOAM, SIDE PANEL (RIGHT)FOAM, SIDE PANEL (RIGHT)
-
50617-503 FOAM, SIDE PANEL (LEFT)FOAM, SIDE PANEL (LEFT)
-
60123-394 CLIP, RETAININGCLIP, RETAINING
-
73606-867 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
84606-041 BUMPER (FRONT)BUMPER (FRONT)
-
92606-911 SCREEN, BELLY PAN (CENTER)SCREEN, BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
121712-189 SHIELD, HEATSHIELD, HEAT
-
138060-510 RIVET, BLINDRIVET, BLIND
-
140623-778 RIVETRIVET
-
151612-893 SEAL, EXHAUST, OUTLETSEAL, EXHAUST, OUTLET
-
161712-174 PLATE, EXHAUST, OUTLETPLATE, EXHAUST, OUTLET
-
178050-217 WASHERWASHER
-
188047-366 NUT, LOCKNUT, LOCK
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
201623-030 NUT, SPEEDNUT, SPEED
-
214606-157 FOIL, PROTECTIVE, ACCESS PANELFOIL, PROTECTIVE, ACCESS PANEL
-
224606-266 FOIL, PROTECTIVE (UPPER)FOIL, PROTECTIVE (UPPER)
-
234606-267 FOIL, PROTECTIVE (LOWER)FOIL, PROTECTIVE (LOWER)
-
240607-447 CABLECABLE
-
250605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
268061-426 RIVETRIVET
-
277611-172 DECAL, CLUTCHINGDECAL, CLUTCHING
-
287611-160 DECAL, REFLECTOR (AMBER/RIGHT)DECAL, REFLECTOR (AMBER/RIGHT)
-
287611-161 DECAL, REFLECTOR (AMBER/LEFT)DECAL, REFLECTOR (AMBER/LEFT)
-
297611-044 DECAL, ACCESS PANEL (RIGHT)DECAL, ACCESS PANEL (RIGHT)
-
297611-045 DECAL, ACCESS PANEL (LEFT)DECAL, ACCESS PANEL (LEFT)
-
302606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
314606-381 PROTECTOR, BELLY PANPROTECTOR, BELLY PAN
-
328061-506 RIVETRIVET
