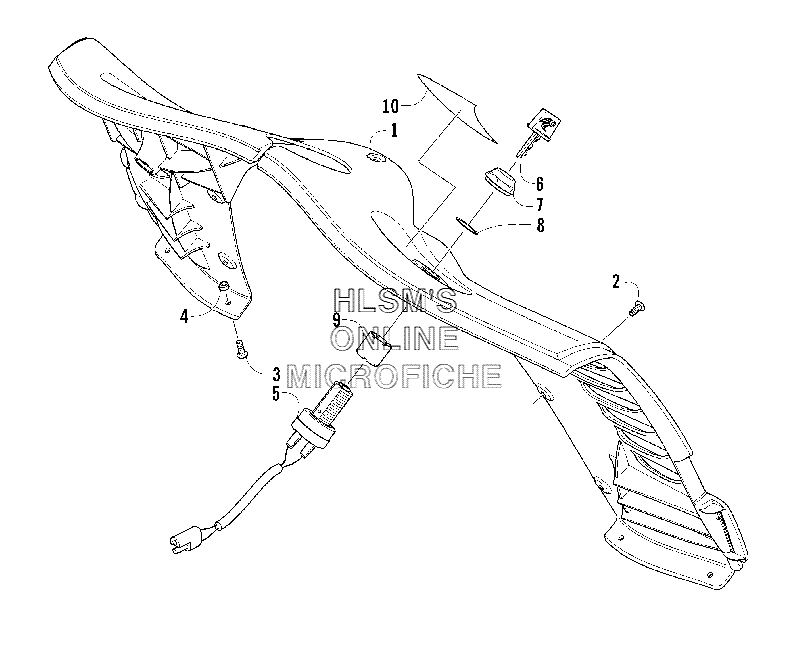

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Crossfire 600 EFI (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
13606-442 CONSOLECONSOLE
-
28017-425 SCREW, MACHINESCREW, MACHINE
-
38017-397 SCREW, MACHINESCREW, MACHINE
-
48041-246 NUT, LOCKNUT, LOCK
-
50609-728 SWITCH, IGNITION (INC. 6)SWITCH, IGNITION (INC. 6)
-
70609-113 NUT, RETAININGNUT, RETAINING
-
80123-899 WASHER, IGNITION SWITCHWASHER, IGNITION SWITCH
-
90609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
106611-581 DECAL, CONSOLEDECAL, CONSOLE
