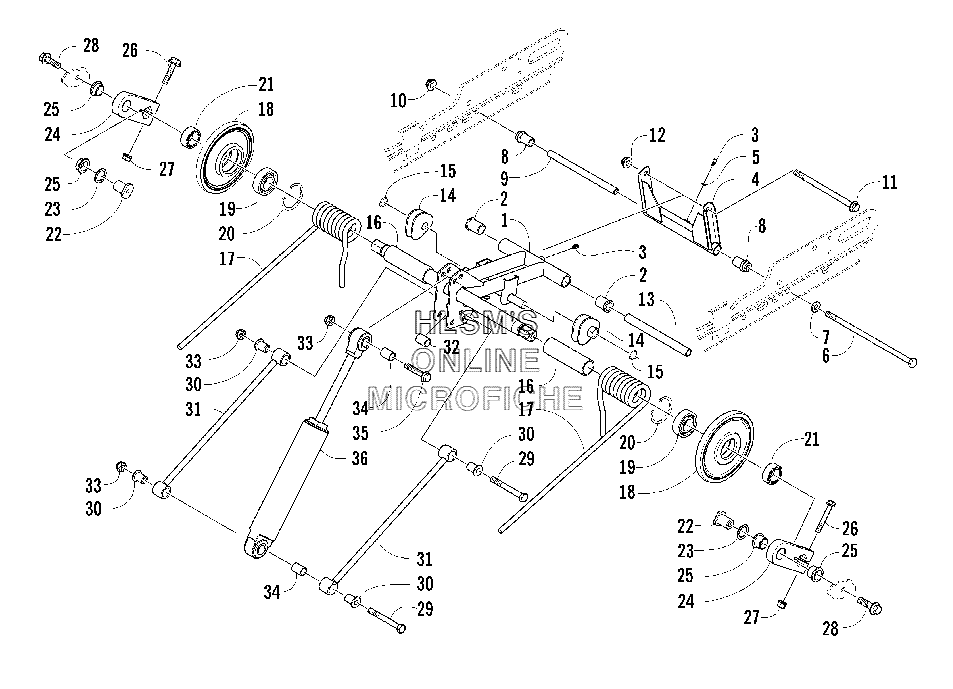

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat CrossFire 700 EFI (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11704-404 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
31623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
41704-019 ARM (REAR) (INC. ONE NO. 3 AND 5)ARM (REAR) (INC. ONE NO. 3 AND 5)
-
51623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
61623-037 SCREW, CAPSCREW, CAP
-
78050-272 WASHERWASHER
-
82604-664 BUSHING, ARM (REAR)BUSHING, ARM (REAR)
-
92604-663 AXLE, ARM (REAR) (INNER)AXLE, ARM (REAR) (INNER)
-
108047-490 NUT, LOCKNUT, LOCK
-
111623-086 SCREW, CAPSCREW, CAP
-
128047-486 NUT, LOCKNUT, LOCK
-
132604-370 AXLE, STEELAXLE, STEEL
-
141604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
141604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
150623-138 RING, RETAININGRING, RETAINING
-
163604-024 SLEEVE, SPRINGSLEEVE, SPRING
-
171704-044 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
171704-045 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
181604-690 WHEEL, IDLER (INC. 19, 20)WHEEL, IDLER (INC. 19, 20)
-
190107-598 BEARINGBEARING
-
200123-798 RING, RETAININGRING, RETAINING
-
212604-980 SPACER, PIVOT, IDLER ARMSPACER, PIVOT, IDLER ARM
-
221604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
231604-187 WASHER, PIVOT, IDLER ARMWASHER, PIVOT, IDLER ARM
-
240704-981 ARM, PIVOT IDLER (INC. 25, 27)ARM, PIVOT IDLER (INC. 25, 27)
-
251604-202 BUSHING, FLAREDBUSHING, FLARED
-
268020-138 SCREW, CAPSCREW, CAP
-
278048-426 NUT, LOCKNUT, LOCK
-
281623-166 SCREW, CAPSCREW, CAP
-
290623-793 SCREW, CAPSCREW, CAP
-
301604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
311704-416 LINK, SHOCK (REAR)LINK, SHOCK (REAR)
-
320704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
338041-486 NUT, LOCKNUT, LOCK
-
341604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
358020-226 SCREW, CAPSCREW, CAP
-
361704-117 SHOCK ABSORBER, ARM (REAR)SHOCK ABSORBER, ARM (REAR)
