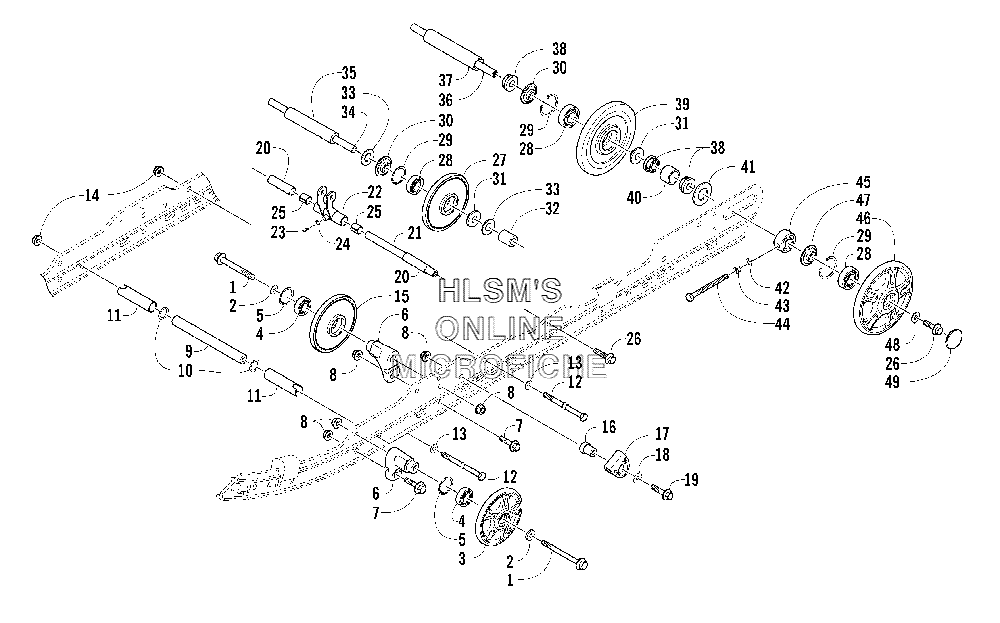

IDLER WHEEL ASSEMBLY для Arctic Cat CrossFire 700 EFI EARLY BUILD (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
33604-019 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARINGBEARING
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78020-224 SCREW, CAPSCREW, CAP
-
88048-486 NUT, LOCKNUT, LOCK
-
91604-792 AXLEAXLE
-
100623-912 WASHERWASHER
-
111604-793 SPACER, SHOCK, ARM (FRONT)SPACER, SHOCK, ARM (FRONT)
-
121623-037 SCREW, CAPSCREW, CAP
-
138050-272 WASHERWASHER
-
148047-490 NUT, LOCKNUT, LOCK
-
151604-837 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
160604-912 BLOCK, SLIDEBLOCK, SLIDE
-
172604-515 SLIDE, SPRINGSLIDE, SPRING
-
188050-282 WASHERWASHER
-
198020-228 SCREW, CAPSCREW, CAP
-
202604-109 SPACERSPACER
-
211604-209 AXLEAXLE
-
220704-994 PIVOT, SHOCK (REAR) (INC. 23, 25)PIVOT, SHOCK (REAR) (INC. 23, 25)
-
231623-010 FITTING, GREASEFITTING, GREASE
-
241623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
250603-083 BEARINGBEARING
-
261623-248 SCREW, CAPSCREW, CAP
-
271604-684 WHEEL, IDLER (INC. 28, 31)WHEEL, IDLER (INC. 28, 31)
-
280107-598 BEARINGBEARING
-
290123-798 RING, RETAININGRING, RETAINING
-
301604-772 INSERT, WHEEL (INSIDE)INSERT, WHEEL (INSIDE)
-
311604-773 INSERT, WHEEL (OUTSIDE)INSERT, WHEEL (OUTSIDE)
-
321604-213 SPACERSPACER
-
330623-675 WASHERWASHER
-
340604-930 AXLEAXLE
-
351604-214 SPACERSPACER
-
361604-217 AXLE (REAR)AXLE (REAR)
-
370604-144 SPACER, WHEEL (REAR)SPACER, WHEEL (REAR)
-
380604-968 BUSHING, SPACERBUSHING, SPACER
-
391604-685 WHEEL, IDLER (INC. 28, 31)WHEEL, IDLER (INC. 28, 31)
-
400604-937 SPACER, WHEEL (REAR)SPACER, WHEEL (REAR)
-
410623-220 WASHERWASHER
-
428051-277 WASHER, LOCKWASHER, LOCK
-
438042-486 NUTNUT
-
440623-123 SCREW, CAPSCREW, CAP
-
450604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
463604-018 WHEEL, IDLER (INC. 28, 29 AND 47)WHEEL, IDLER (INC. 28, 29 AND 47)
-
471604-774 INSERT, WHEELINSERT, WHEEL
-
480123-570 WASHERWASHER
-
490604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
