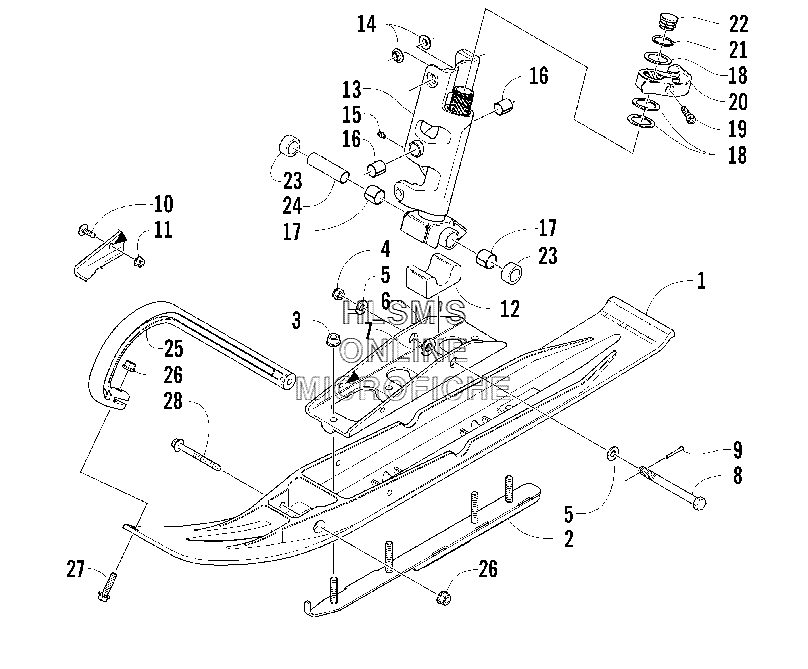

SKI AND SPINDLE ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11703-109 SKI, PLASTICSKI, PLASTIC
-
22603-456 WEARBAR (RIGHT)WEARBAR (RIGHT)
-
22603-457 WEARBAR (LEFT)WEARBAR (LEFT)
-
38047-486 NUT, LOCKNUT, LOCK
-
40123-296 NUT, LOCKNUT, LOCK
-
50623-728 WASHERWASHER
-
61703-501 SADDLE, SKI (INC. 7)SADDLE, SKI (INC. 7)
-
70603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
80623-552 SCREW, CAPSCREW, CAP
-
90123-458 PIN, COTTERPIN, COTTER
-
108017-581 SCREW, MACHINESCREW, MACHINE
-
118048-366 NUT, LOCKNUT, LOCK
-
122603-553 DAMPER, SKIDAMPER, SKI
-
131703-630 SPINDLE, STEERING (RIGHT) (INC. 14, 21)SPINDLE, STEERING (RIGHT) (INC. 14, 21)
-
131703-631 SPINDLE, STEERING (LEFT) (INC. 14, 21)SPINDLE, STEERING (LEFT) (INC. 14, 21)
-
140603-647 INSERT, SPINDLEINSERT, SPINDLE
-
151623-010 FITTING, GREASEFITTING, GREASE
-
160603-083 BEARINGBEARING
-
170603-158 BEARINGBEARING
-
181603-203 WASHER, THRUSTWASHER, THRUST
-
198005-584 SCREW, CAPSCREW, CAP
-
201703-413 ARM, STEERINGARM, STEERING
-
210623-796 RING, RETAININGRING, RETAINING
-
220623-831 CAP, SPINDLECAP, SPINDLE
-
231603-908 SPACERSPACER
-
242603-548 AXLE, SPINDLEAXLE, SPINDLE
-
250603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
268048-426 NUT, LOCKNUT, LOCK
-
278020-135 SCREW, CAPSCREW, CAP
-
288020-143 SCREW, CAPSCREW, CAP
