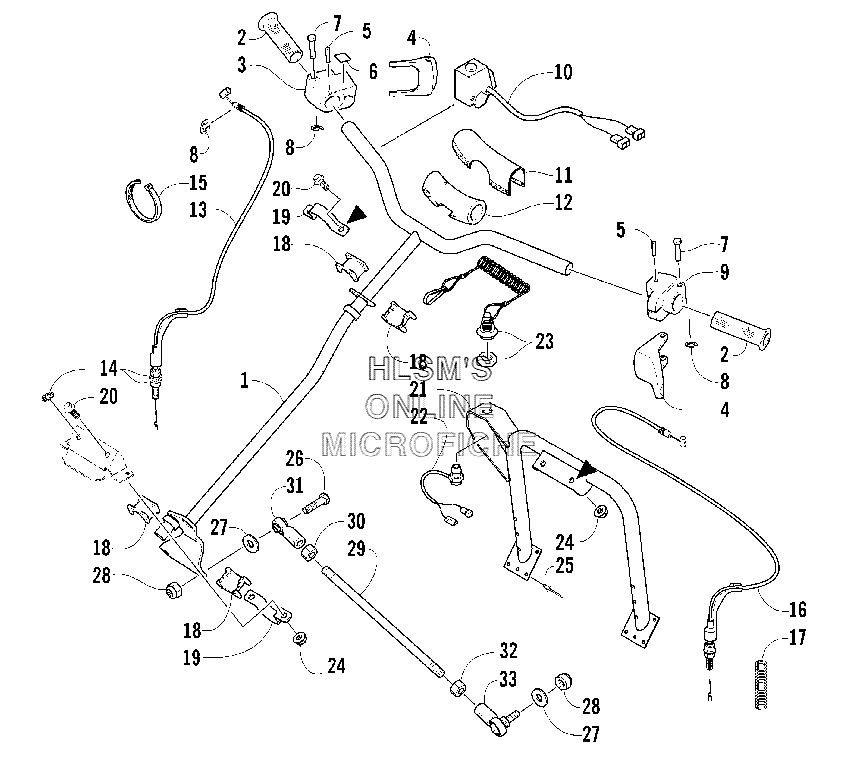

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat F 120 (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11703-866 POST, STEERINGPOST, STEERING
-
21606-765 GRIP, HANDLEGRIP, HANDLE
-
30302-165 CONTROL, THROTTLECONTROL, THROTTLE
-
40109-609 LEVER, THROTTLE/BRAKELEVER, THROTTLE/BRAKE
-
58070-318 PIN, SPRINGPIN, SPRING
-
60611-022 DECAL, ENGINE STOP SWITCHDECAL, ENGINE STOP SWITCH
-
70123-230 PINPIN
-
80123-231 RING, RETAININGRING, RETAINING
-
90302-147 HOUSING, BRAKEHOUSING, BRAKE
-
100609-007 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
110605-560 COVER, HANDLEBAR PADCOVER, HANDLEBAR PAD
-
120605-501 PAD, HANDLEBARPAD, HANDLEBAR
-
130687-121 CABLE, THROTTLECABLE, THROTTLE
-
148053-212 WASHER, LOCK EXTERNAL TOOTHWASHER, LOCK EXTERNAL TOOTH
-
150123-788 CABLE TIE 7 IN.CABLE TIE 7 IN.
-
160687-122 CABLE, BRAKECABLE, BRAKE
-
171602-100 SPRING, RETURN BRAKESPRING, RETURN BRAKE
-
180605-444 BEARING, STEERING POSTBEARING, STEERING POST
-
190705-896 RETAINER, BEARINGRETAINER, BEARING
-
208020-040 SCREW, CAPSCREW, CAP
-
212706-144 SUPPORT, STEERING POSTSUPPORT, STEERING POST
-
220630-138 SWITCH, TETHER ASSEMBLY (INC. 23)SWITCH, TETHER ASSEMBLY (INC. 23)
-
230630-139 CORD, TETHER SWITCHCORD, TETHER SWITCH
-
248047-366 NUT, LOCKNUT, LOCK
-
258060-504 RIVET, BLINDRIVET, BLIND
-
268004-135 SCREW, CAPSCREW, CAP
-
278050-247 WASHERWASHER
-
281623-423 NUT, LOCKNUT, LOCK
-
291703-853 TIE ROD ASSEMBLY (INC. 30 33)TIE ROD ASSEMBLY (INC. 30 33)
-
300623-260 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
310605-777 ROD END (LEFT)ROD END (LEFT)
-
320123-144 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
330605-776 ROD END (RIGHT)ROD END (RIGHT)
