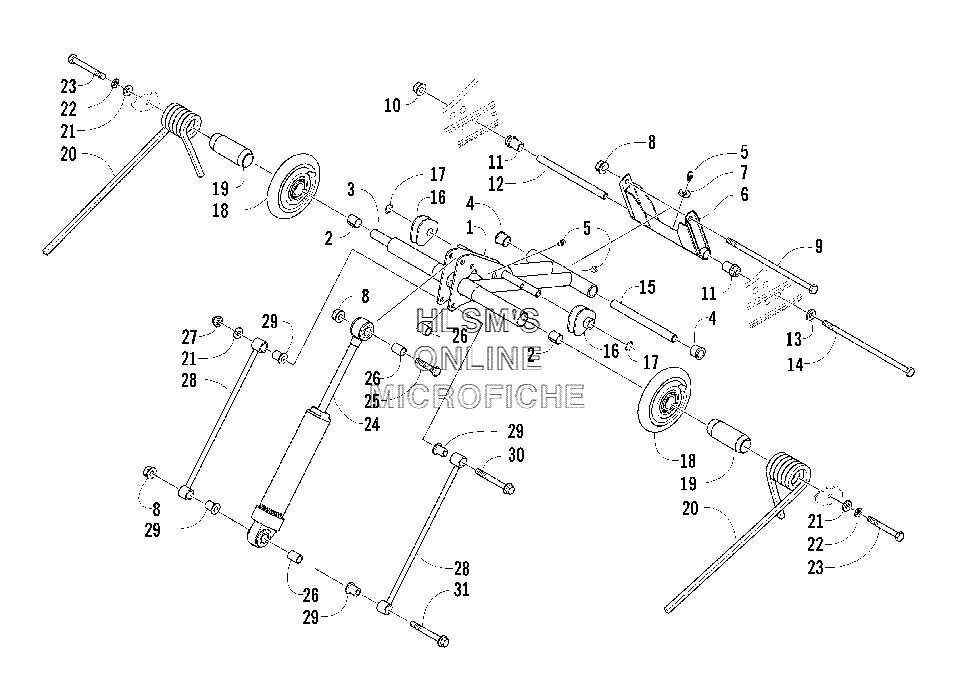

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat F5 Firecat (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11704-455 ARM, IDLER (INC. 2, 4 AND TWO NO. 5)ARM, IDLER (INC. 2, 4 AND TWO NO. 5)
-
23604-095 BEARINGBEARING
-
33604-096 AXLE, CARRIAGE (INNER)AXLE, CARRIAGE (INNER)
-
41604-100 BUSHING, FLAREDBUSHING, FLARED
-
51623-010 FITTING, GREASEFITTING, GREASE
-
61704-019 ARM (REAR) (INC. ONE NO. 5 AND 7)ARM (REAR) (INC. ONE NO. 5 AND 7)
-
71623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
88047-486 NUT, LOCKNUT, LOCK
-
91623-086 SCREW, CAPSCREW, CAP
-
108047-490 NUT, LOCKNUT, LOCK
-
112604-664 BUSHING, ARM (REAR)BUSHING, ARM (REAR)
-
122604-663 TUBE, AXLETUBE, AXLE
-
138050-272 WASHERWASHER
-
141623-037 SCREW, CAPSCREW, CAP
-
152604-370 AXLE, STEELAXLE, STEEL
-
161604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
161604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
170623-138 RING, RETAININGRING, RETAINING
-
182604-992 WHEEL, IDLERWHEEL, IDLER
-
192604-993 SLEEVE, SPRINGSLEEVE, SPRING
-
200704-926 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
200704-927 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
210623-044 WASHERWASHER
-
228051-277 WASHER, LOCKWASHER, LOCK
-
238002-226 SCREW, CAPSCREW, CAP
-
241704-454 SHOCK ABSORBER, ARM (REAR)SHOCK ABSORBER, ARM (REAR)
-
258002-227 SCREW, CAPSCREW, CAP
-
261604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
278041-486 NUT, LOCKNUT, LOCK
-
280704-361 LINK, SHOCK (REAR)LINK, SHOCK (REAR)
-
292604-531 AXLE, LINKAXLE, LINK
-
301623-219 SCREW, CAPSCREW, CAP
-
318020-234 SCREW, CAPSCREW, CAP
