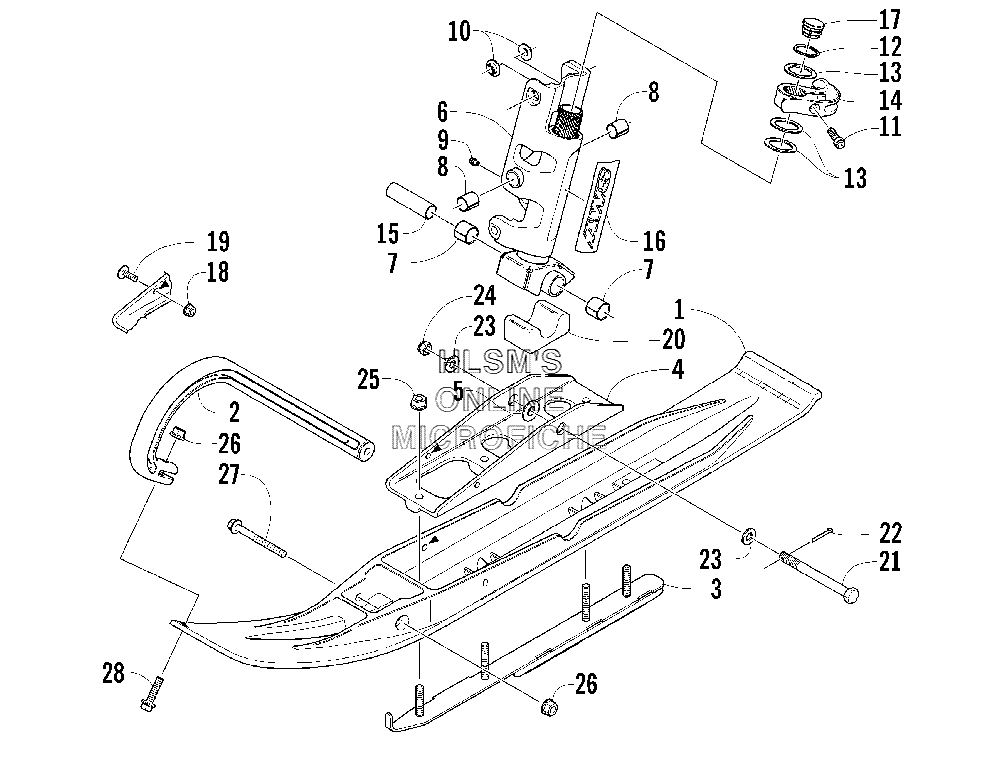

SKI AND SPINDLE ASSEMBLY для Arctic Cat F5 Firecat (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
11703-109 SKI, PLASTICSKI, PLASTIC
-
20603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
32603-456 WEARBAR (RIGHT)WEARBAR (RIGHT)
-
32603-457 WEARBAR (LEFT)WEARBAR (LEFT)
-
41703-501 SADDLE, SKI (INC. 5)SADDLE, SKI (INC. 5)
-
50603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
61703-720 SPINDLE, STEERING (RIGHT) (INC. 7, 14)SPINDLE, STEERING (RIGHT) (INC. 7, 14)
-
61703-721 SPINDLE, STEERING (LEFT) (INC. 7, 14)SPINDLE, STEERING (LEFT) (INC. 7, 14)
-
70603-158 BEARINGBEARING
-
80603-083 BEARINGBEARING
-
91623-010 FITTING, GREASEFITTING, GREASE
-
100603-647 INSERT, SPINDLEINSERT, SPINDLE
-
118005-584 SCREW, CAPSCREW, CAP
-
120623-796 RING, RETAININGRING, RETAINING
-
131603-203 WASHER, THRUSTWASHER, THRUST
-
141703-413 ARM, STEERINGARM, STEERING
-
152603-548 AXLE, SPINDLEAXLE, SPINDLE
-
166611-958 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
170623-831 CAP, SPINDLECAP, SPINDLE
-
188048-366 NUT, LOCKNUT, LOCK
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
200603-036 DAMPER, SKIDAMPER, SKI
-
210623-552 SCREW, CAPSCREW, CAP
-
220123-458 PIN, COTTERPIN, COTTER
-
230623-728 WASHERWASHER
-
240123-296 NUT, LOCKNUT, LOCK
-
258047-486 NUT, LOCKNUT, LOCK
-
268048-426 NUT, LOCKNUT, LOCK
-
278020-143 SCREW, CAPSCREW, CAP
-
288020-135 SCREW, CAPSCREW, CAP
