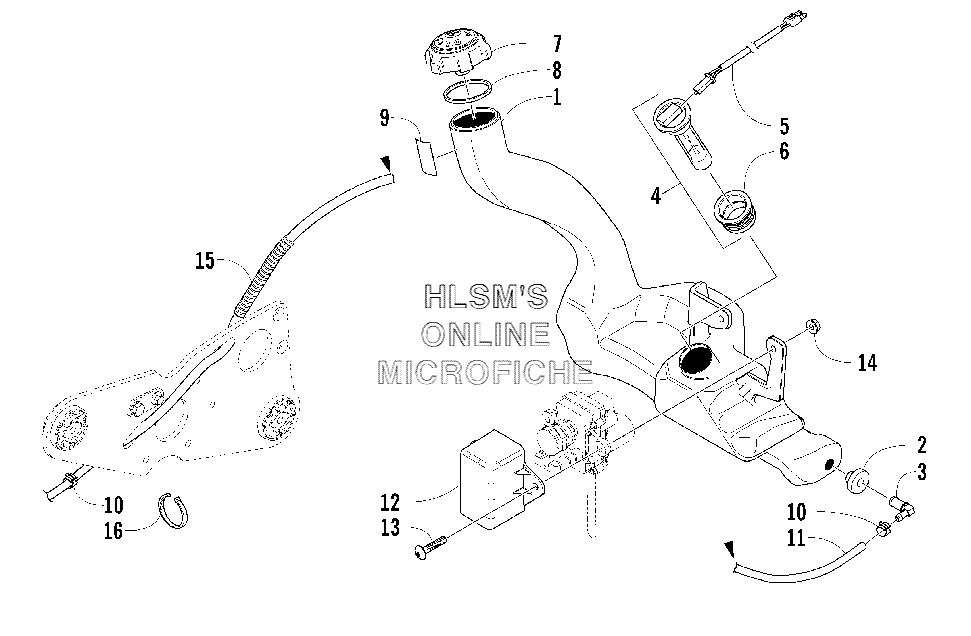

OIL TANK ASSEMBLY для Arctic Cat F5 Firecat Sno Pro (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11670-673 TANK, OIL (INC. 2, 3)TANK, OIL (INC. 2, 3)
-
21670-325 GROMMETGROMMET
-
31670-324 FITTING, ELBOWFITTING, ELBOW
-
40609-683 SENSOR, LOW OIL, ASSY (INC. 5, 6)SENSOR, LOW OIL, ASSY (INC. 5, 6)
-
50609-639 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
60609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
71670-365 CAP, OIL TANK (INC. 8)CAP, OIL TANK (INC. 8)
-
80109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
94611-532 DECAL, OIL TANKDECAL, OIL TANK
-
101623-042 CLAMP, HOSECLAMP, HOSE
-
110610-693 HOSE, OIL, 100 FTHOSE, OIL, 100 FT
-
110610-692 HOSE, OIL, 25 FTHOSE, OIL, 25 FT
-
122606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
138017-584 SCREW, MACHINESCREW, MACHINE
-
148047-366 NUT, LOCKNUT, LOCK
-
150716-558 LOOM, PROTECTIVE, 10 FTLOOM, PROTECTIVE, 10 FT
-
160123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
