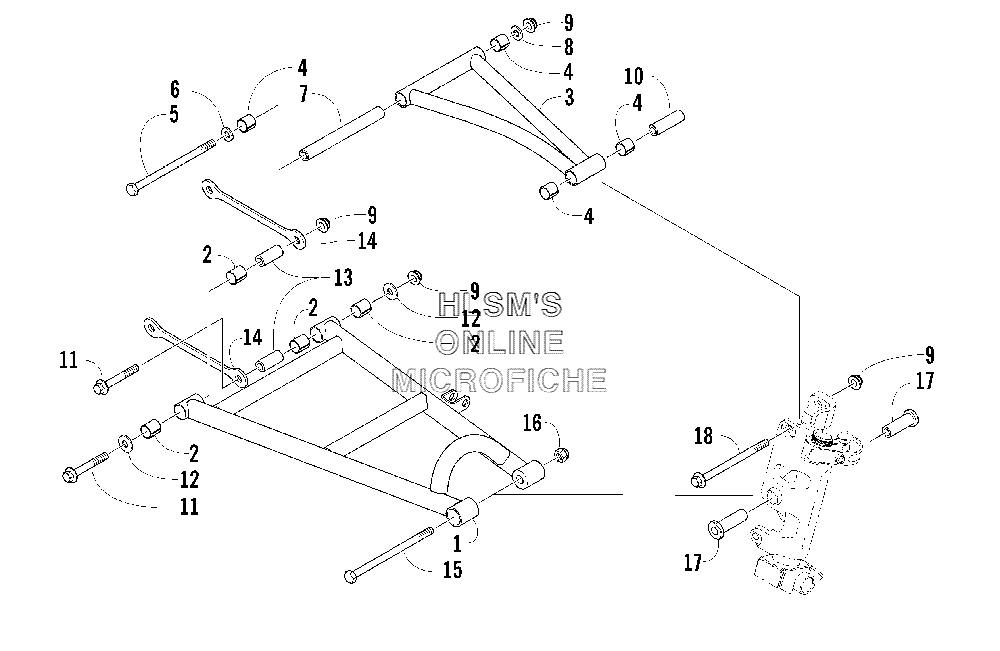

A-ARM ASSEMBLY для Arctic Cat F6 Firecat EFI R (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11703-668 A, ARM (LOWER/RIGHT) (INC. 2)A, ARM (LOWER/RIGHT) (INC. 2)
-
11703-669 A, ARM (LOWER/LEFT) (INC. 2)A, ARM (LOWER/LEFT) (INC. 2)
-
21603-895 BEARINGBEARING
-
31703-094 A, ARM (UPPER) (INC. 4)A, ARM (UPPER) (INC. 4)
-
40603-083 BEARINGBEARING
-
50623-952 SCREW, CAPSCREW, CAP
-
61623-415 WASHERWASHER
-
71603-563 AXLE, ARM (INNER/UPPER)AXLE, ARM (INNER/UPPER)
-
80623-044 WASHERWASHER
-
98047-486 NUT, LOCKNUT, LOCK
-
100603-864 TUBE, AXLETUBE, AXLE
-
111623-403 SCREW, CAPSCREW, CAP
-
128050-282 WASHERWASHER
-
132603-305 AXLE, ARM (INNER/LOWER)AXLE, ARM (INNER/LOWER)
-
142606-886 BRACE, A, ARM (LOWER)BRACE, A, ARM (LOWER)
-
151623-009 SCREW, CAPSCREW, CAP
-
168040-546 NUT, LOCKNUT, LOCK
-
171603-616 AXLE, POWDER METALAXLE, POWDER METAL
-
188026-232 SCREW, CAPSCREW, CAP
