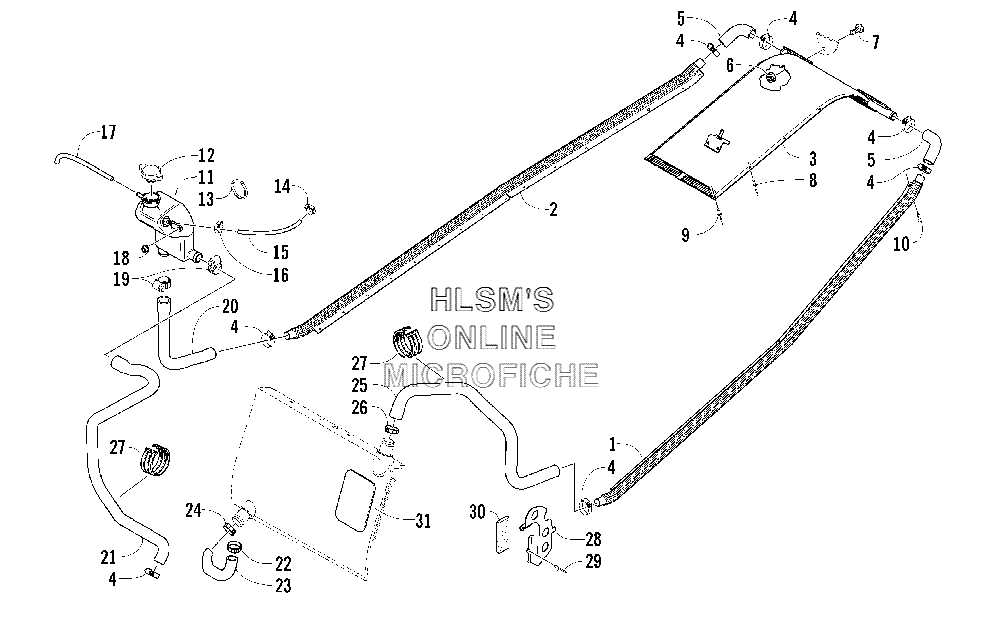

COOLING ASSEMBLY для Arctic Cat F6 Firecat EFI R (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
12706-526 HEAT EXCHANGER, TUBE (LEFT)HEAT EXCHANGER, TUBE (LEFT)
-
22706-527 HEAT EXCHANGER, TUBE (RIGHT)HEAT EXCHANGER, TUBE (RIGHT)
-
33706-001 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
41623-229 CLAMP, HOSECLAMP, HOSE
-
50610-567 HOSE, COOLANT, HEAT EXCHANGER (REAR)HOSE, COOLANT, HEAT EXCHANGER (REAR)
-
68041-246 NUT, LOCKNUT, LOCK
-
78017-397 SCREW, MACHINESCREW, MACHINE
-
88060-484 RIVETRIVET
-
91623-405 RIVETRIVET
-
101623-061 SCREW, PLASTITESCREW, PLASTITE
-
113606-349 TANK, COOLANTTANK, COOLANT
-
120606-268 CAP, FILLER NECKCAP, FILLER NECK
-
130123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
140623-063 CLAMP, HOSECLAMP, HOSE
-
150610-538 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
160124-045 CLAMP, HOSECLAMP, HOSE
-
170610-693 HOSE, VENT, 100 FTHOSE, VENT, 100 FT
-
170610-692 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
188047-366 NUT, LOCKNUT, LOCK
-
191623-092 CLAMP, HOSECLAMP, HOSE
-
200610-571 HOSE, COOLANT, TUBE/COOLANT TANK (RIGHT)HOSE, COOLANT, TUBE/COOLANT TANK (RIGHT)
-
210610-573 HOSE, COOLANT, COOLANT TANK/ENGINEHOSE, COOLANT, COOLANT TANK/ENGINE
-
221623-418 CLAMP, HOSECLAMP, HOSE
-
230610-648 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
241623-186 CLAMP, HOSECLAMP, HOSE
-
250610-570 HOSE, COOLANT, HEAT EXCHANGER/LEFT TUBE (FRONT)HOSE, COOLANT, HEAT EXCHANGER/LEFT TUBE (FRONT)
-
261623-187 CLAMP, HOSECLAMP, HOSE
-
270623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
283606-354 PROTECTOR, HOSEPROTECTOR, HOSE
-
290623-166 RIVETRIVET
-
300406-288 PAD, FOAMPAD, FOAM
-
310617-498 FOAM, HEAT EXCHANGER (FRONT)FOAM, HEAT EXCHANGER (FRONT)
