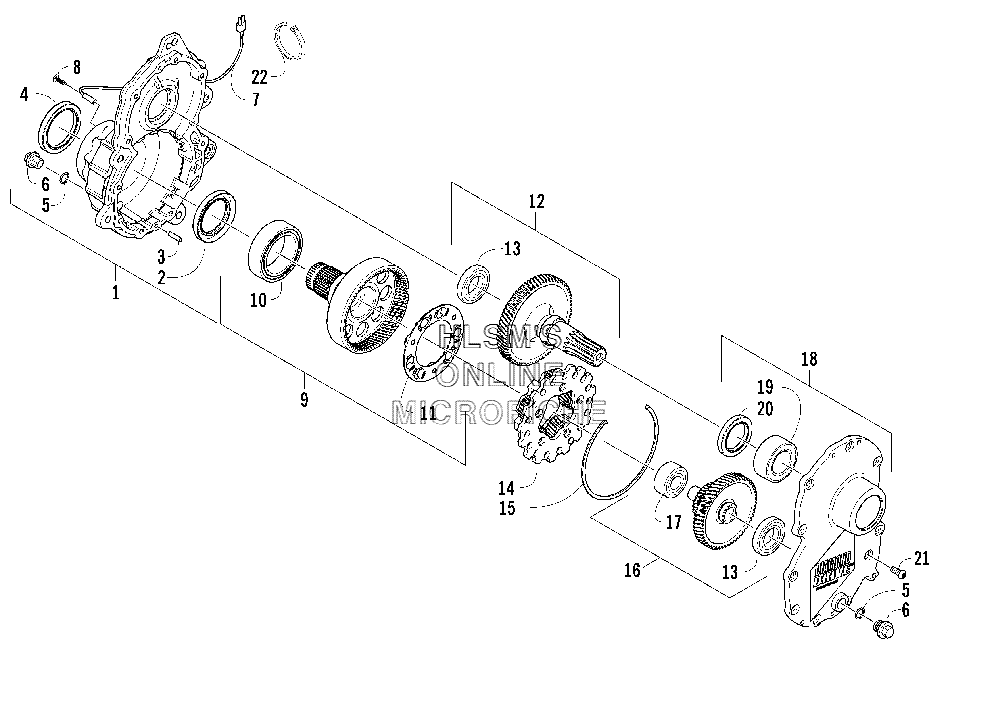

GEARCASE ASSEMBLY для Arctic Cat F6 Firecat EFI Sno Pro (BLACK) - 2006 года выпуска

№

Артикул

Название
-

0702-791 COMPLETE GEARCASE ASSY

COMPLETE GEARCASE ASSY

250 ₽
1

0702-789 GEARCASE (INC. 2, 4 AND ONE NO. 5, 6)

GEARCASE (INC. 2, 4 AND ONE NO. 5, 6)

23 710 ₽
2

1602-344 SEAL, OIL

SEAL, OIL

1 240 ₽
3

1602-345 PIN, DOWEL

PIN, DOWEL

230 ₽
4

1602-766 SEAL, OIL

SEAL, OIL

3 740 ₽
5

1602-213 O-RING

O-RING

60 ₽
6

0623-293 PLUG, GEARCASE

PLUG, GEARCASE

400 ₽
7

0630-212 SENSOR, SPEEDOMETER

SENSOR, SPEEDOMETER

13 930 ₽
8

1623-343 CLIP, RETAINING

CLIP, RETAINING

270 ₽
9

0702-675 GEAR, RING (76 TEETH) (INC. 10, 11)

GEAR, RING (76 TEETH) (INC. 10, 11)

86 520 ₽
10

1602-318 BEARING

BEARING

6 860 ₽
11

1602-745 RETAINER, MAGNET

RETAINER, MAGNET

4 150 ₽
12

0702-693 SHAFT, INPUT (62 TEETH) (INC. ONE NO. 13)

SHAFT, INPUT (62 TEETH) (INC. ONE NO. 13)

28 700 ₽
12

0702-691 SHAFT, INPUT (60 TEETH) (INC. ONE NO. 13) (OVER 5, 000 FT ALT.)

SHAFT, INPUT (60 TEETH) (INC. ONE NO. 13) (OVER 5, 000 FT ALT.)

25 990 ₽
13

1602-340 BEARING

BEARING

2 700 ₽
14

1602-349 GEAR, PLANETARY, 5 PINION

GEAR, PLANETARY, 5 PINION

38 470 ₽
15

1602-731 RING, RETAINING, PLANETARY GEAR

RING, RETAINING, PLANETARY GEAR

4 150 ₽
16

0702-707 GEAR, TRANSFER (58/34 TEETH) (INC. ONE NO. 13 AND 17)

GEAR, TRANSFER (58/34 TEETH) (INC. ONE NO. 13 AND 17)

38 060 ₽
16

0702-709 GEAR, TRANSFER (60/34 TEETH) (INC. ONE NO. 13 AND 17) (OVER 5, 000 FT ALT.)

GEAR, TRANSFER (60/34 TEETH) (INC. ONE NO. 13 AND 17) (OVER 5, 000 FT ALT.)

41 180 ₽
17

1602-348 BEARING

BEARING

8 110 ₽
18

0702-803 COVER, GEARCASE (INC. ONE NO. 5, 6 AND 19, 20)

COVER, GEARCASE (INC. ONE NO. 5, 6 AND 19, 20)

50 540 ₽
19

1602-341 BEARING

BEARING

5 610 ₽
20

1602-875 SEAL, OIL

SEAL, OIL

3 530 ₽
21

1623-075 SCREW, MACHINE

SCREW, MACHINE

150 ₽
22

0123-811 TIE, CABLE

TIE, CABLE

40 ₽
22

4639-025 FLUID, GEARCASE, CASE

FLUID, GEARCASE, CASE

0 ₽
