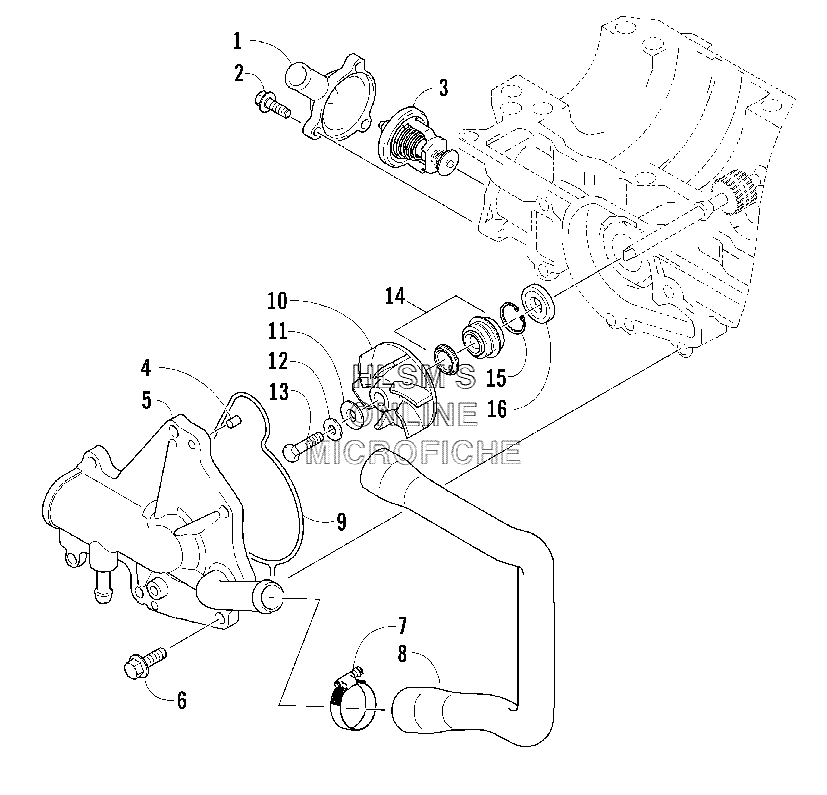

WATER PUMP AND THERMOSTAT для Arctic Cat F6 Firecat EFI Sno Pro (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13006-914 CAPCAP
-
23004-512 BOLTBOLT
-
33007-041 THERMOSTATTHERMOSTAT
-
43005-899 PIN, DOWELPIN, DOWEL
-
53006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
63004-341 BOLTBOLT
-
73006-324 CLAMPCLAMP
-
83006-521 HOSE, WATER INLETHOSE, WATER INLET
-
93006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
103005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
113003-432 GASKETGASKET
-
123003-431 WASHERWASHER
-
133003-426 BOLTBOLT
-
143005-909 SEAL, WATER PUMP KITSEAL, WATER PUMP KIT
-
153004-009 CIRCLIPCIRCLIP
-
163004-760 SEAL, OILSEAL, OIL
