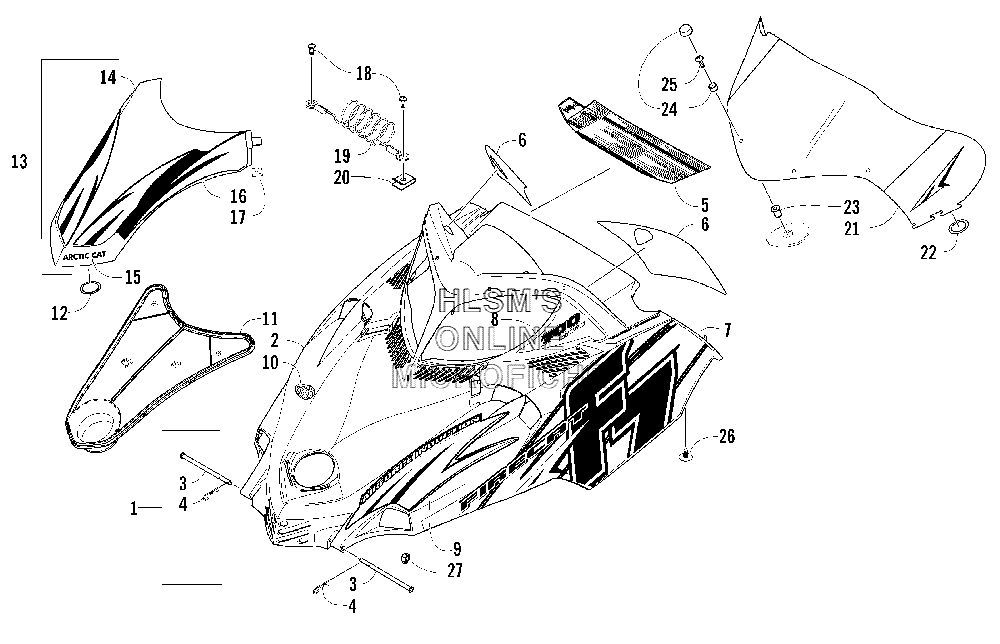

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat F7 Firecat EFI R (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
11718-895 HOOD W/DECALS (INC. 2, 9)HOOD W/DECALS (INC. 2, 9)
-
21718-896 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
55611-483 DECAL, CAUTION/WARNING, REVERSEDECAL, CAUTION/WARNING, REVERSE
-
66611-926 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
66611-927 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
76611-932 DECAL, HOOD (LOWER) RIGHTDECAL, HOOD (LOWER) RIGHT
-
76611-933 DECAL, HOOD (LOWER) LEFTDECAL, HOOD (LOWER) LEFT
-
86611-940 DECAL, HOOD, LIGHT (RIGHT)DECAL, HOOD, LIGHT (RIGHT)
-
86611-941 DECAL, HOOD, LIGHT (LEFT)DECAL, HOOD, LIGHT (LEFT)
-
96611-942 DECAL, HOOD (UPPER) RIGHTDECAL, HOOD (UPPER) RIGHT
-
96611-943 DECAL, HOOD (UPPER) LEFTDECAL, HOOD (UPPER) LEFT
-
100617-466 FOAM, HOODFOAM, HOOD
-
113606-150 SCREEN, HOODSCREEN, HOOD
-
122606-801 O-RINGO-RING
-
131718-845 COVER, HOOD W/DECALS (INC. 14, 17)COVER, HOOD W/DECALS (INC. 14, 17)
-
142706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
153611-679 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
166611-924 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
166611-925 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
172606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
180623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192606-726 CABLE, HOODCABLE, HOOD
-
201623-052 U, NUTU, NUT
-
214606-026 WINDSHIELDWINDSHIELD
-
220616-032 O-RINGO-RING
-
230623-845 NUT, EXPANSIONNUT, EXPANSION
-
240124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
250623-902 SCREW, MACHINESCREW, MACHINE
-
260623-544 PLUGPLUG
-
270123-394 CLIP, RETAININGCLIP, RETAINING
