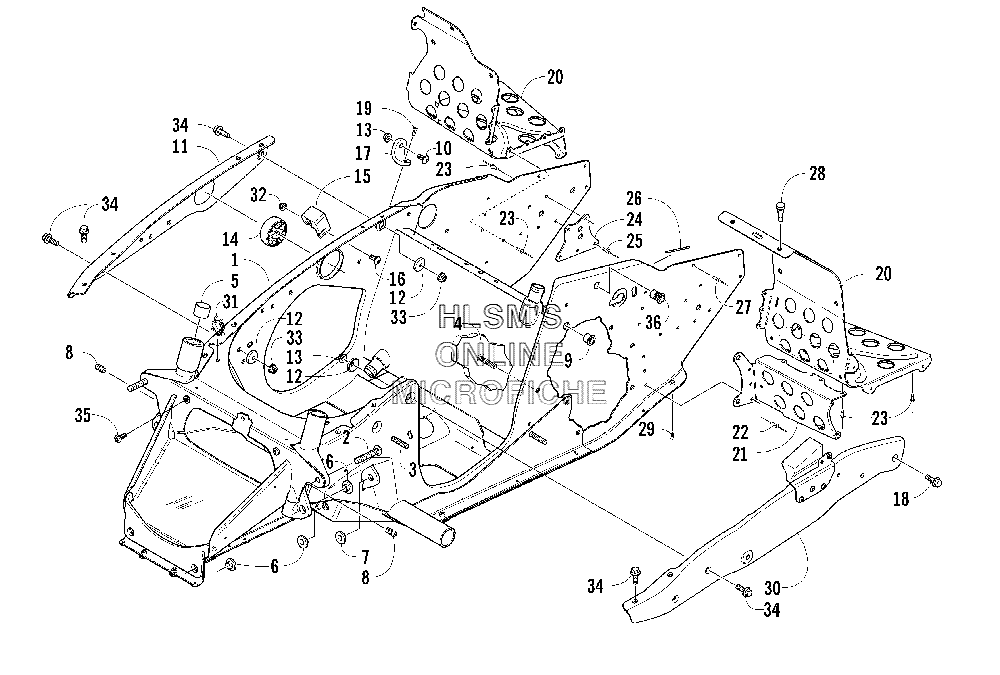

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat F7 Firecat EFI Sno Pro (BLACK) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
-1707-085 COMPLETE CHASSIS ASSYCOMPLETE CHASSIS ASSY
-
11707-025 CHASSIS, ASSY (INC. 2, 9 AND 35)CHASSIS, ASSY (INC. 2, 9 AND 35)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
41623-359 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
50675-161 BEARINGBEARING
-
60607-657 BUSHING, A, ARM MOUNT (LOWER)BUSHING, A, ARM MOUNT (LOWER)
-
70607-656 BUSHING, A, ARM MOUNT (UPPER)BUSHING, A, ARM MOUNT (UPPER)
-
81623-010 FITTING, GREASEFITTING, GREASE
-
90623-581 INSERTINSERT
-
108017-580 SCREW, MACHINESCREW, MACHINE
-
113606-742 BRACE, PLATE (SIDE/RIGHT)BRACE, PLATE (SIDE/RIGHT)
-
120623-943 WASHER, CUPWASHER, CUP
-
138047-366 NUT, LOCKNUT, LOCK
-
140608-364 MOUNT, ENGINEMOUNT, ENGINE
-
150608-432 GUIDE, ROPEGUIDE, ROPE
-
168017-400 SCREW, MACHINESCREW, MACHINE
-
173606-634 SUPPORT, PLATE (SIDE)SUPPORT, PLATE (SIDE)
-
188020-041 SCREW, CAPSCREW, CAP
-
191623-115 SCREWSCREW
-
203606-466 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
204606-223 FOOTREST (LEFT)FOOTREST (LEFT)
-
210607-772 BRACKET, SUPPORT, FOOTREST (RIGHT)BRACKET, SUPPORT, FOOTREST (RIGHT)
-
210607-773 BRACKET, SUPPORT, FOOTREST (LEFT)BRACKET, SUPPORT, FOOTREST (LEFT)
-
221623-241 RIVETRIVET
-
230623-282 RIVETRIVET
-
242706-151 PLATE, BACKINGPLATE, BACKING
-
250623-341 RIVETRIVET
-
260706-371 TRIMTRIM
-
271623-130 RIVETRIVET
-
283606-178 BUMPERBUMPER
-
291623-018 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
303706-145 BRACE, PLATE (SIDE/LEFT)BRACE, PLATE (SIDE/LEFT)
-
311623-171 CLIPCLIP
-
328041-246 NUT, LOCKNUT, LOCK
-
338048-366 NUT, LOCKNUT, LOCK
-
348020-040 SCREW, CAPSCREW, CAP
-
351623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
360623-582 INSERTINSERT
