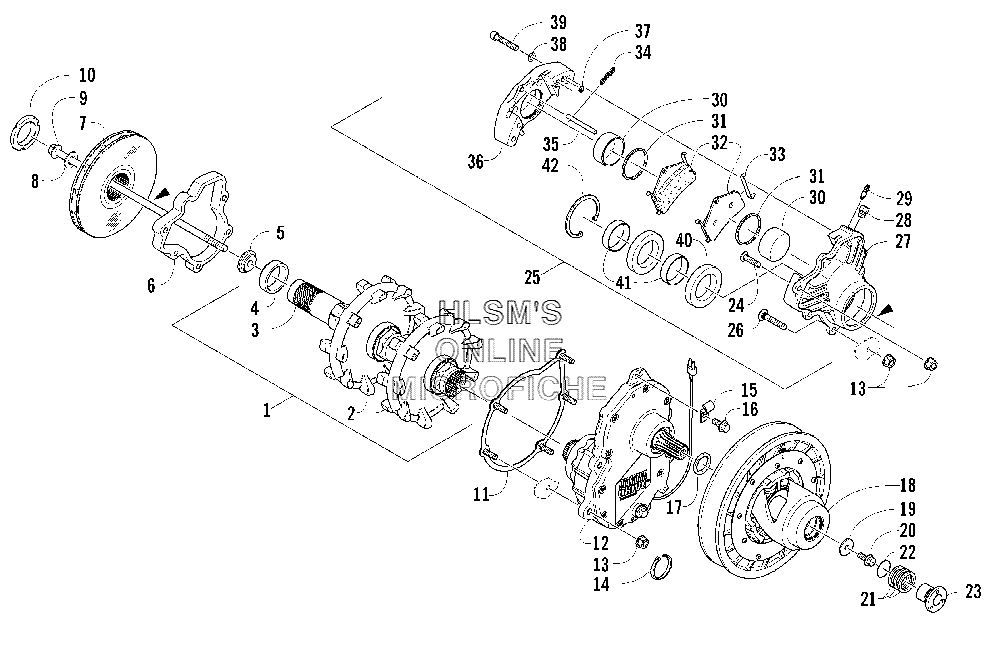

DRIVE TRAIN AND BRAKE ASSEMBLIES для Arctic Cat F7 Firecat EFI Sno Pro (ORANGE) - 2006 года выпуска
‹-+›
-
№АртикулНазвание
-
10728-131 TRACK DRIVE ASSY (INC. 2, 4)TRACK DRIVE ASSY (INC. 2, 4)
-
21602-783 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-759 DRIVESHAFTDRIVESHAFT
-
41602-315 COLLARCOLLAR
-
51602-791 INSERT, DRIVESHAFTINSERT, DRIVESHAFT
-
61602-480 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
71602-656 DISC, BRAKEDISC, BRAKE
-
81623-445 WASHER, COPPERWASHER, COPPER
-
91623-457 SCREW, CAPSCREW, CAP
-
101602-355 NUT, RETAININGNUT, RETAINING
-
110702-529 PLATE, MOUNTING, GEARCASEPLATE, MOUNTING, GEARCASE
-
120702-792 GEARCASE ASSYGEARCASE ASSY
-
138047-426 NUT, LOCKNUT, LOCK
-
140123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
151623-390 CLAMP, HALFCLAMP, HALF
-
168020-131 SCREW, CAPSCREW, CAP
-
170648-442 WASHERWASHER
-
170648-443 WASHERWASHER
-
180726-222 CLUTCH, DRIVENCLUTCH, DRIVEN
-
191623-072 WASHERWASHER
-
201623-275 SCREW, CAPSCREW, CAP
-
210648-714 WASHERWASHER
-
210648-715 WASHERWASHER
-
210648-716 WASHERWASHER
-
220648-441 O-RINGO-RING
-
230648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
248017-676 SCREW, MACHINESCREW, MACHINE
-
250702-655 CALIPER, BRAKE, ASSY (INC. 26, 42)CALIPER, BRAKE, ASSY (INC. 26, 42)
-
261623-359 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
280602-590 FITTING, ADAPTERFITTING, ADAPTER
-
291602-458 FITTING, BLEEDFITTING, BLEED
-
301602-461 PISTONPISTON
-
311602-669 O-RINGO-RING
-
320702-563 PAD, BRAKE, SET (INC. 33, 34)PAD, BRAKE, SET (INC. 33, 34)
-
331602-466 CLIP, ANTI, RATTLECLIP, ANTI, RATTLE
-
341602-467 CLIP, HAIRPINCLIP, HAIRPIN
-
351602-464 PIN, RETAINING, BRAKE PADPIN, RETAINING, BRAKE PAD
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
380402-165 WASHERWASHER
-
391602-671 SCREW, CAPSCREW, CAP
-
401602-462 BEARINGBEARING
-
411602-463 SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
421602-456 RING, RETAININGRING, RETAINING
