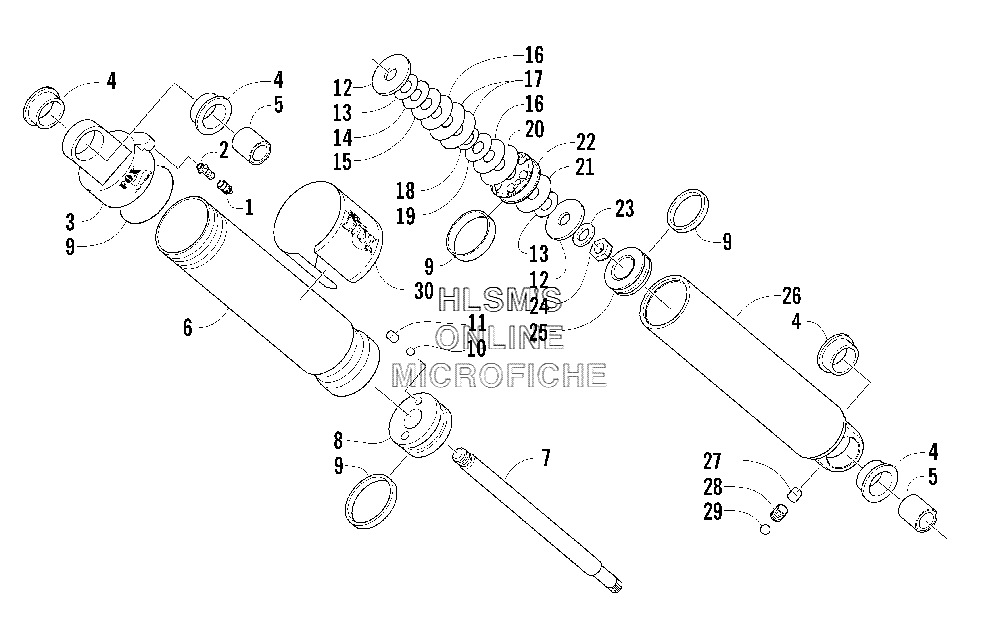

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat F7 Firecat Sno Pro (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
-1703-966 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12603-327 CAP, AIR VALVECAP, AIR VALVE
-
22603-326 VALVE, AIRVALVE, AIR
-
32603-418 END CAP, SHOCKEND CAP, SHOCK
-
40603-955 BUSHING, SHOCKBUSHING, SHOCK
-
51603-209 SLEEVE, SHOCKSLEEVE, SHOCK
-
62603-609 BODY, SHOCK (UPPER)BODY, SHOCK (UPPER)
-
72603-606 ROD, SHOCKROD, SHOCK
-
82603-524 BEARING, ASSYBEARING, ASSY
-
92604-796 SEAL/CAP REBUILD KITSEAL/CAP REBUILD KIT
-
101604-315 BALL, BLEEDBALL, BLEED
-
111603-940 SCREWSCREW
-
120603-540 WASHER, TOP OUTWASHER, TOP OUT
-
130603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
140603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
150603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
160603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
170603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
180603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
190603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
200603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
210603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
222603-309 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUT, CAPNUT, CAP
-
252603-417 PISTON, FLOATINGPISTON, FLOATING
-
262603-608 BODY, SHOCK (LOWER)BODY, SHOCK (LOWER)
-
271604-428 PLUG, RUBBER, VALVEPLUG, RUBBER, VALVE
-
282603-338 SCREW, SETSCREW, SET
-
292603-337 BALL, AIR VALVEBALL, AIR VALVE
-
302603-610 DECAL, SHOCKDECAL, SHOCK
-
302639-149 OIL, SHOCK, 6 QT CASEOIL, SHOCK, 6 QT CASE
-
304639-012 FLUID, FLOAT SHOCK, 8 OZFLUID, FLOAT SHOCK, 8 OZ
