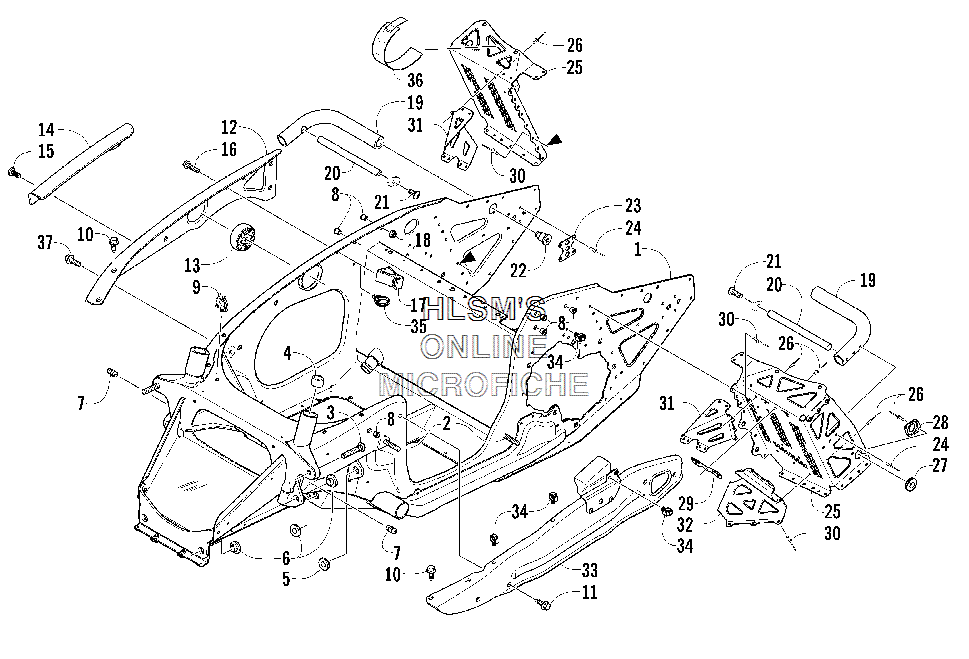

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat M7 Carb 153'' Attack 20 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
-1707-083 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-076 CHASSIS, ASSEMBLY (INC. 2, 8)CHASSIS, ASSEMBLY (INC. 2, 8)
-
21623-359 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
40675-161 BEARINGBEARING
-
50607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
60607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
71623-010 FITTING, GREASEFITTING, GREASE
-
80623-581 INSERTINSERT
-
91623-171 CLIPCLIP
-
101623-480 SCREW, CAPSCREW, CAP
-
111623-481 SCREW, CAPSCREW, CAP
-
123606-416 BRACE, SIDE PLATE (RIGHT)BRACE, SIDE PLATE (RIGHT)
-
130608-404 MOUNT, ENGINEMOUNT, ENGINE
-
143606-761 PROTECTOR, MAIN HARNESSPROTECTOR, MAIN HARNESS
-
151623-353 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
161623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170608-449 GUIDE, ROPEGUIDE, ROPE
-
188041-426 NUT, LOCKNUT, LOCK
-
192706-685 TUBE, SUPPORT, FOOTRESTTUBE, SUPPORT, FOOTREST
-
203606-775 GUARD, SUPPORT TUBEGUARD, SUPPORT TUBE
-
218017-577 SCREW, MACHINESCREW, MACHINE
-
221623-484 SCREW, TUBESCREW, TUBE
-
232706-580 PLATE, BACKINGPLATE, BACKING
-
248060-686 RIVETRIVET
-
253706-296 FOOTREST (RIGHT) (INC. 26, 28)FOOTREST (RIGHT) (INC. 26, 28)
-
253706-297 FOOTREST (LEFT) (INC. 26, 29)FOOTREST (LEFT) (INC. 26, 29)
-
268060-484 RIVETRIVET
-
271623-529 GROMMETGROMMET
-
283606-837 PLATE, RETAININGPLATE, RETAINING
-
290607-835 PLATE, MOUNTING, BELT GUARDPLATE, MOUNTING, BELT GUARD
-
301623-264 RIVETRIVET
-
313606-904 BRACKET, SUPPORT, FOOTREST (RIGHT)BRACKET, SUPPORT, FOOTREST (RIGHT)
-
313606-905 BRACKET, SUPPORT, FOOTREST (LEFT)BRACKET, SUPPORT, FOOTREST (LEFT)
-
323606-907 BRACKET, SUPPORT, FOOTREST (LOWER/LEFT)BRACKET, SUPPORT, FOOTREST (LOWER/LEFT)
-
333706-111 BRACE, SIDE PLATE (LEFT)BRACE, SIDE PLATE (LEFT)
-
341623-406 CLIP, ROUTINGCLIP, ROUTING
-
350623-454 CLIP, ROUTINGCLIP, ROUTING
-
363706-033 RETAINER, TOOL KITRETAINER, TOOL KIT
-
371623-561 SCREW, CAPSCREW, CAP
