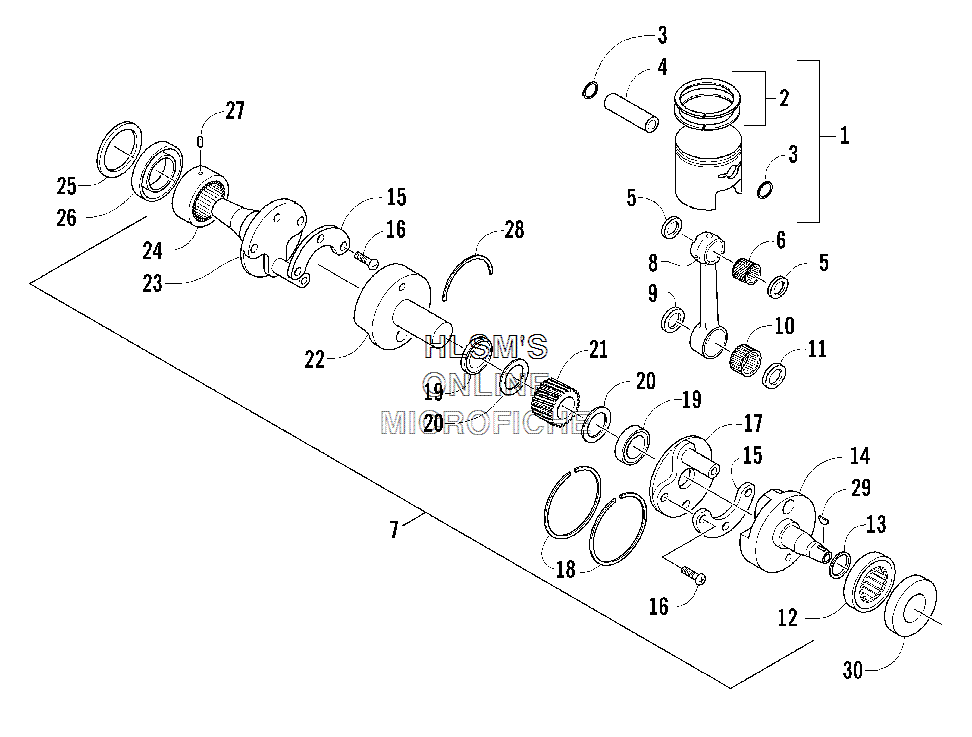

PISTON AND CRANKSHAFT для Arctic Cat M7 Carb 153'' Challenger (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13006-499 PISTON SET (INC. 2, 3)PISTON SET (INC. 2, 3)
-
23006-500 RING SET, PISTONRING SET, PISTON
-
33005-304 CIRCLIP, PISTONCIRCLIP, PISTON
-
43006-501 PIN, PISTONPIN, PISTON
-
53008-500 WASHERWASHER
-
63008-503 BEARINGBEARING
-
73006-710 CRANKSHAFT ASSEMBLY (INC. 8, 24)CRANKSHAFT ASSEMBLY (INC. 8, 24)
-
83005-308 CONNECTING RODCONNECTING ROD
-
93004-147 WASHER, CRANK PIN BEARINGWASHER, CRANK PIN BEARING
-
103008-504 BEARINGBEARING
-
113006-489 WASHERWASHER
-
123006-551 BEARINGBEARING
-
133008-495 SHIMSHIM
-
143006-711 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
153006-719 BALANCER, CRANKSHAFTBALANCER, CRANKSHAFT
-
163004-372 SCREWSCREW
-
173006-505 WHEEL, CRANKSHAFTWHEEL, CRANKSHAFT
-
183005-508 RING CRANK SEAL (MIDDLE)RING CRANK SEAL (MIDDLE)
-
193008-421 BEARINGBEARING
-
203006-508 RACE CRANK SEAL (MIDDLE)RACE CRANK SEAL (MIDDLE)
-
213006-519 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
223006-504 CRANKSHAFT (MIDDLE)CRANKSHAFT (MIDDLE)
-
233006-506 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
243006-540 BEARINGBEARING
-
253006-552 SPACER, OIL SEALSPACER, OIL SEAL
-
263003-759 SEAL, OILSEAL, OIL
-
273003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
283003-359 C, RINGC, RING
-
293010-070 KEYKEY
-
303003-367 SEAL, OILSEAL, OIL
