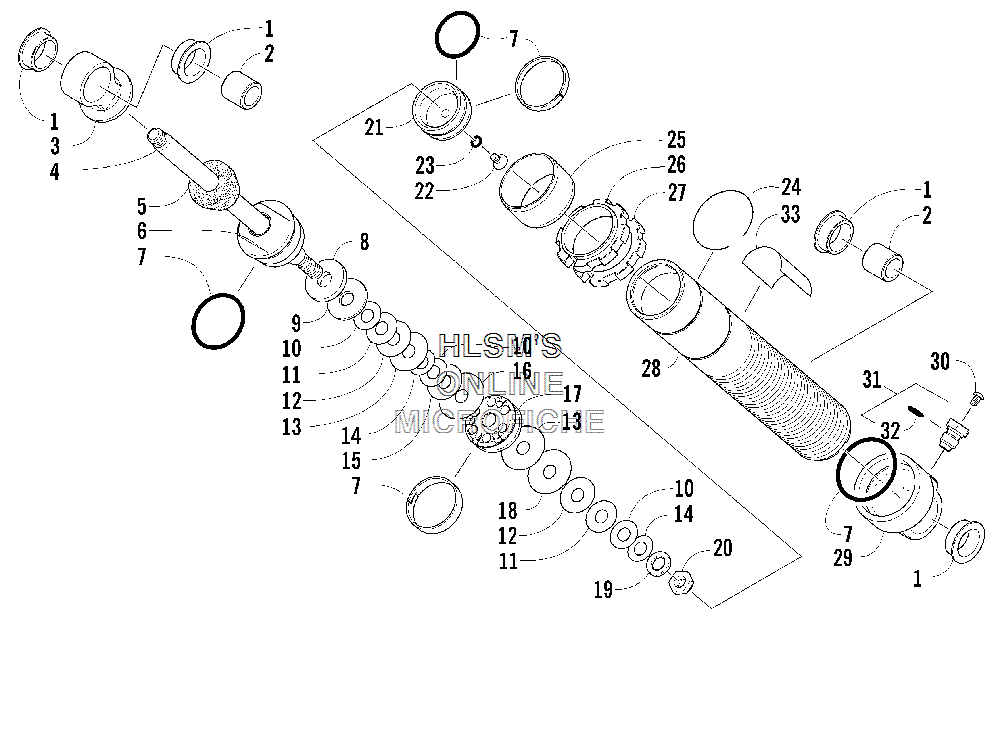

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M7 EFI 141'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
-1703-783 SHOCK ABORBERSHOCK ABORBER
-
10603-955 BUSHING, SHOCKBUSHING, SHOCK
-
21603-209 SLEEVE, EYELETSLEEVE, EYELET
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-416 ROD, SHOCKROD, SHOCK
-
52603-459 BUMPER, SHOCKBUMPER, SHOCK
-
62604-812 CAP, SHOCKCAP, SHOCK
-
72604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
82603-474 SPACERSPACER
-
90603-540 WASHER, TOP OUTWASHER, TOP OUT
-
100603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
110603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
120603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
130603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
140603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
150603-342 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
160603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
172603-309 PISTON, 0.120 IN., ORIFICEPISTON, 0.120 IN., ORIFICE
-
180603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
190603-389 WASHER, BACKUPWASHER, BACKUP
-
200603-301 NUT, LOCKNUT, LOCK
-
212604-816 PISTON, FLOATINGPISTON, FLOATING
-
221604-316 SCREW, RELIEF (INC. 23)SCREW, RELIEF (INC. 23)
-
231604-425 O-RINGO-RING
-
242603-245 RETAINER, SLEEVERETAINER, SLEEVE
-
252603-246 SLEEVE, PROTECTORSLEEVE, PROTECTOR
-
262604-840 NUT, ADJUSTERNUT, ADJUSTER
-
272604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
282603-460 BODY, SHOCKBODY, SHOCK
-
292604-817 END CAP, SHOCKEND CAP, SHOCK
-
300624-097 SCREW, VALVESCREW, VALVE
-
310703-341 VALVE, PRESSURE (INC. 32)VALVE, PRESSURE (INC. 32)
-
321604-318 O-RING, VALVEO-RING, VALVE
-
332604-897 DECAL, SHOCKDECAL, SHOCK
-
-2639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
