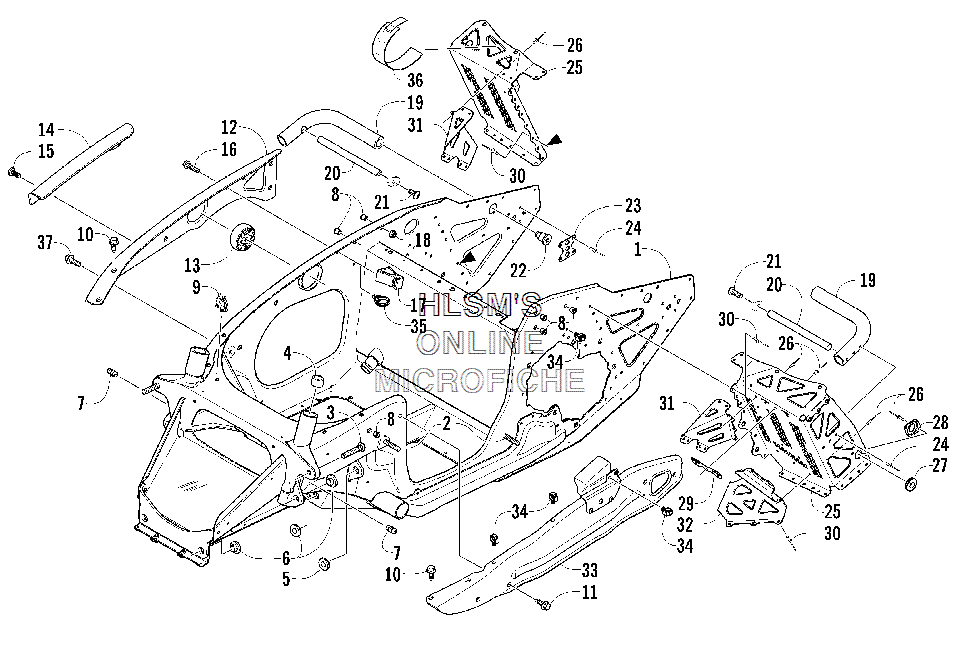

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat M7 EFI 153'' CT (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11707-076 CHASSIS, ASSY. (INC. 2, 8)CHASSIS, ASSY. (INC. 2, 8)
-
21623-359 BOLT, CARRIAGE, RIBBED (5/16-18X1.75)BOLT, CARRIAGE, RIBBED (5/16-18X1.75)
-
31623-019 BOLT, CARRIAGE, RIBBED (3/8-16X2.00)BOLT, CARRIAGE, RIBBED (3/8-16X2.00)
-
40675-161 BEARINGBEARING
-
50607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
60607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
71623-010 FITTING, GREASEFITTING, GREASE
-
80623-581 INSERTINSERT
-
91623-171 CLIPCLIP
-
101623-480 SCREW, CAP-HFH 1/4 20X.56 ZY (2SCREW, CAP-HFH 1/4 20X.56 ZY (2
-
111623-481 SCREW, CAP-HFH 5/16 18X.875 ZYSCREW, CAP-HFH 5/16 18X.875 ZY
-
123606-416 BRACE, SIDE PLATE (RIGHT)BRACE, SIDE PLATE (RIGHT)
-
130608-404 MOUNT, ENGINEMOUNT, ENGINE
-
143606-761 PROTECTOR, MAIN HARNESSPROTECTOR, MAIN HARNESS
-
151623-353 SCREW, SELF TAP-TSPNH 10-24 X 3SCREW, SELF TAP-TSPNH 10-24 X 3
-
161623-204 SCREW, PLASTITE-HWH 1/4-10X1.0SCREW, PLASTITE-HWH 1/4-10X1.0
-
170608-449 GUIDE, ROPEGUIDE, ROPE
-
188041-426 NUT, LOCKNUT, LOCK
-
192706-685 TUBE, SUPPORT, FOOTRESTTUBE, SUPPORT, FOOTREST
-
203606-775 GUARD, SUPPORT TUBEGUARD, SUPPORT TUBE
-
218017-577 SCREW, MACHINESCREW, MACHINE
-
221623-484 SCREW, TUBESCREW, TUBE
-
232706-580 PLATE, BACKINGPLATE, BACKING
-
248060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
253706-296 FOOTREST (RIGHT) (INC. 26, 28)FOOTREST (RIGHT) (INC. 26, 28)
-
253706-297 FOOTREST (LEFT) (INC. 26, 29)FOOTREST (LEFT) (INC. 26, 29)
-
268060-484 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
271623-529 GROMMETGROMMET
-
283606-837 PLATE, RETAININGPLATE, RETAINING
-
290607-835 PLATE, MOUNTING, BELT GUARDPLATE, MOUNTING, BELT GUARD
-
301623-264 RIVET, CHERRY-CCPQ06-04RIVET, CHERRY-CCPQ06-04
-
313606-904 BRACKET, SUPPORT, FOOTREST (RIGHT)BRACKET, SUPPORT, FOOTREST (RIGHT)
-
313606-905 BRACKET, SUPPORT, FOOTREST (LEFT)BRACKET, SUPPORT, FOOTREST (LEFT)
-
323606-907 BRACKET, SUPPORT, FOOTREST (LOWER) LEFTBRACKET, SUPPORT, FOOTREST (LOWER) LEFT
-
333706-111 BRACE, SIDE PLATE (LEFT)BRACE, SIDE PLATE (LEFT)
-
341623-406 CLIP, ROUTINGCLIP, ROUTING
-
350623-454 CLIP, ROUTINGCLIP, ROUTING
-
363706-033 RETAINER, TOOL KITRETAINER, TOOL KIT
-
371623-561 SCREW, CAPSCREW, CAP
