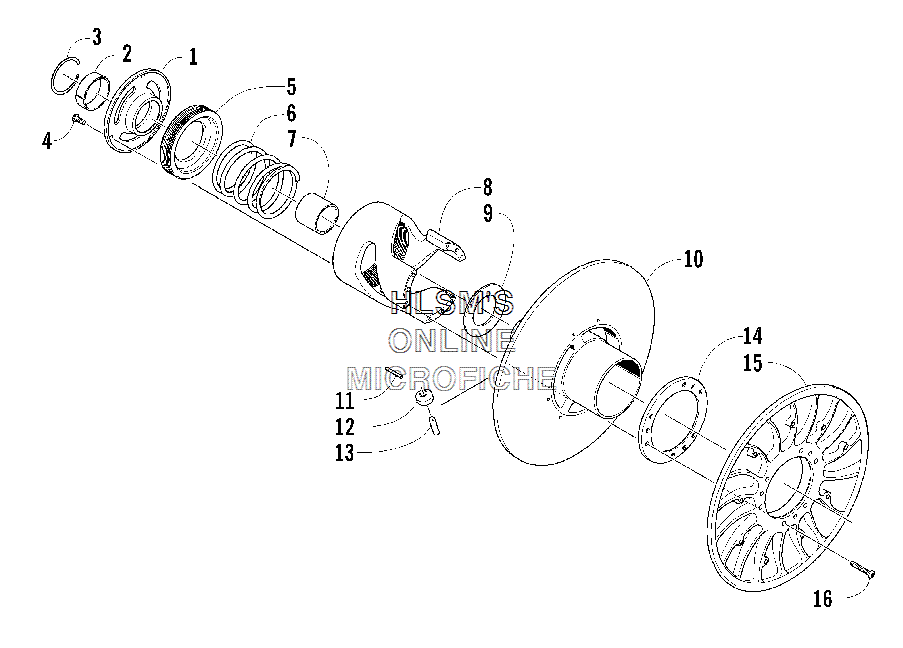

DRIVEN CLUTCH для Arctic Cat M7 EFI 153'' CT (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
-0726-224 DRIVEN CLUTCH ASSEMBLYDRIVEN CLUTCH ASSEMBLY
-
10748-595 COVER, TORQUE BRACKET (INC. 2, 3)COVER, TORQUE BRACKET (INC. 2, 3)
-
20648-009 BEARINGBEARING
-
30648-433 RING, SNAPRING, SNAP
-
41623-516 SCREW, MACHINESCREW, MACHINE
-
50648-761 ADJUSTER, SPRINGADJUSTER, SPRING
-
60648-693 SPRING, DRIVEN CLUTCH, WHITESPRING, DRIVEN CLUTCH, WHITE
-
70648-720 SPACERSPACER
-
80648-765 BRACKET, TORQUE 36°BRACKET, TORQUE 36°
-
90648-437 SEAT, SPRINGSEAT, SPRING
-
100748-614 SHEAVE, STATIONARY (INC. 11, 13)SHEAVE, STATIONARY (INC. 11, 13)
-
110648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
120648-139 ROLLER, CAMROLLER, CAM
-
138070-224 PIN, SPRINGPIN, SPRING
-
140648-767 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
150748-591 SHEAVE, MOVABLESHEAVE, MOVABLE
-
161623-517 SCREW, MACHINESCREW, MACHINE
