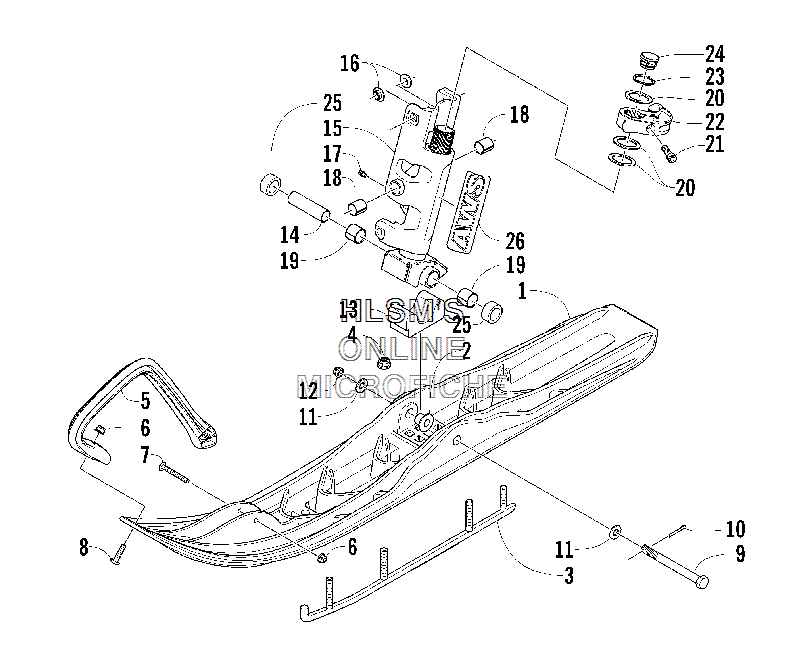

SKI AND SPINDLE ASSY. для Arctic Cat M7 EFI 153'' (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
12603-586 SKI, PLASTICSKI, PLASTIC
-
22603-397 INSERT, SKIINSERT, SKI
-
30703-871 WEARBARWEARBAR
-
48047-486 NUT, LOCKNUT, LOCK
-
52603-598 HANDLE, PLASTICHANDLE, PLASTIC
-
68047-366 NUT, LOCKNUT, LOCK
-
78017-587 SCREW, MACH-TXSTRH 1/4-20 X 2.0SCREW, MACH-TXSTRH 1/4-20 X 2.0
-
88017-584 SCREW, MACH-TXSTRH 1/4-20 X 1 1SCREW, MACH-TXSTRH 1/4-20 X 1 1
-
90623-776 SCREW, CAPSCREW, CAP
-
100123-458 PIN, COTTERPIN, COTTER
-
110623-728 WASHERWASHER
-
120123-296 NUT, LOCKNUT, LOCK
-
132603-553 DAMPER, SKIDAMPER, SKI
-
142603-548 AXLE, SPINDLEAXLE, SPINDLE
-
151703-886 SPINDLE, STEERING (RIGHT) (INC. 16, 23)SPINDLE, STEERING (RIGHT) (INC. 16, 23)
-
151703-887 SPINDLE, STEERING (LEFT) (INC. 16, 23)SPINDLE, STEERING (LEFT) (INC. 16, 23)
-
160603-647 INSERT, SPINDLEINSERT, SPINDLE
-
171623-010 FITTING, GREASEFITTING, GREASE
-
180603-083 BEARINGBEARING
-
190603-158 BEARINGBEARING
-
201603-203 WASHER, THRUSTWASHER, THRUST
-
218005-584 SCREW, CAPSCREW, CAP
-
221703-659 ARM, STEERINGARM, STEERING
-
230623-796 RING, RETAININGRING, RETAINING
-
240623-831 CAP, SPINDLECAP, SPINDLE
-
251603-908 SPACERSPACER
-
267611-065 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
