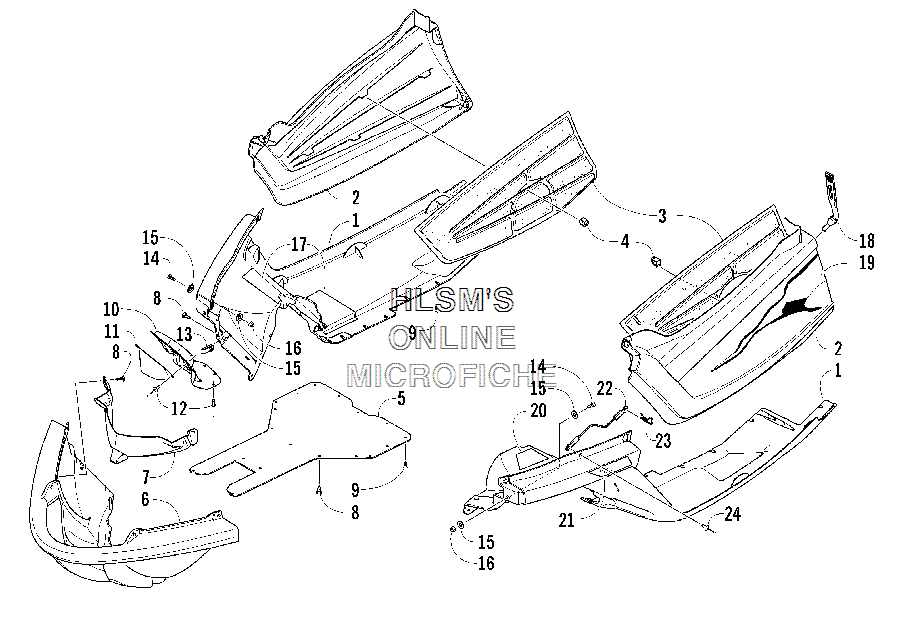

BELLY PAN ASSY. для Arctic Cat M7 EFI 153'' (WEST YELLOWSTONE BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
12706-628 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
12706-815 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
23606-426 PANEL, ACCESS (RIGHT)PANEL, ACCESS (RIGHT)
-
23606-427 PANEL, ACCESS (LEFT)PANEL, ACCESS (LEFT)
-
30617-502 FOAM, SIDE PANEL (RIGHT)FOAM, SIDE PANEL (RIGHT)
-
30617-503 FOAM, SIDE PANEL (LEFT)FOAM, SIDE PANEL (LEFT)
-
40123-394 CLIP, RETAININGCLIP, RETAINING
-
53606-867 BELLY PAN, CENTERBELLY PAN, CENTER
-
64606-040 BUMPER, FRONTBUMPER, FRONT
-
72606-911 SCREEN, BELLY PAN, CENTERSCREEN, BELLY PAN, CENTER
-
80623-784 SCREW, SELF TAP-TSTRH (10-12X3/)SCREW, SELF TAP-TSTRH (10-12X3/)
-
90623-797 SCREW, SELF TAP-TSTRH (10-12X1/2)SCREW, SELF TAP-TSTRH (10-12X1/2)
-
101612-853 SHIELD, HEATSHIELD, HEAT
-
111612-861 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
120623-778 RIVETRIVET
-
131623-030 NUT, SPEEDNUT, SPEED
-
148017-581 SCREW, MACHINESCREW, MACHINE
-
158050-217 WASHERWASHER
-
168047-366 NUT, LOCKNUT, LOCK
-
170619-206 TAPE, FOILTAPE, FOIL
-
182606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
197611-018 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
197611-019 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
207611-154 DECAL, CLUTCHINGDECAL, CLUTCHING
-
216611-514 DECAL, REFLECTOR (AMBER) (RIGHT)DECAL, REFLECTOR (AMBER) (RIGHT)
-
216611-515 DECAL, REFLECTOR (AMBER) (LEFT)DECAL, REFLECTOR (AMBER) (LEFT)
-
220607-447 CABLECABLE
-
230605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
248061-426 RIVETRIVET
