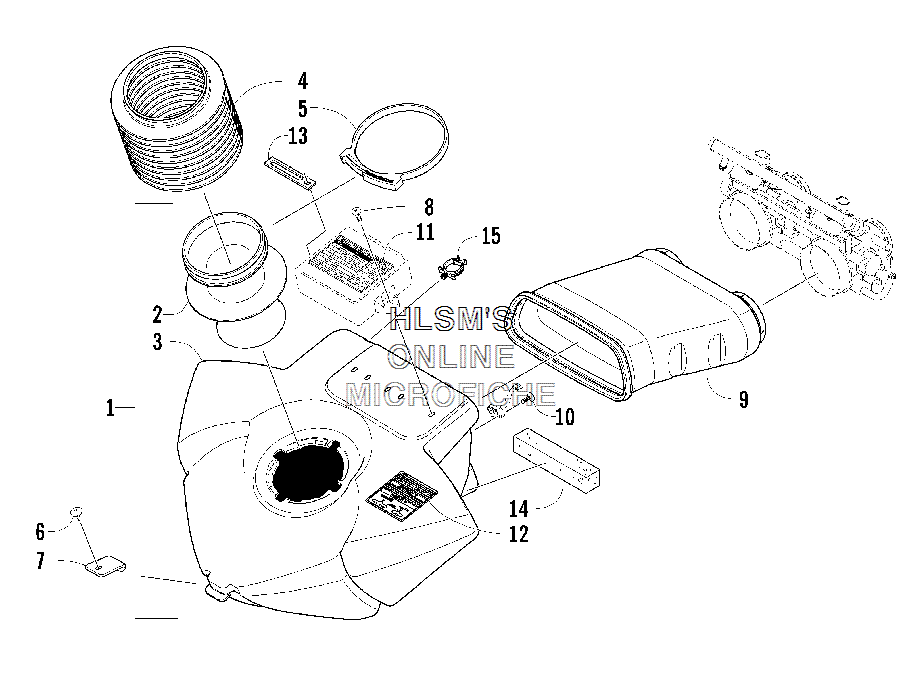

AIR SILENCER ASSY. для Arctic Cat M7 EFI 162'' (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
10770-719 SILENCER, AIR, ASSY. (INC. 2, 3)SILENCER, AIR, ASSY. (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-754 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, PLASTITESCREW, PLASTITE
-
91670-613 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100623-165 CLIP, RETAININGCLIP, RETAINING
-
115611-619 DECAL, EFI DIAGNOSTIC CODESDECAL, EFI DIAGNOSTIC CODES
-
123611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
133002-964 CLAMP, WIRECLAMP, WIRE
-
140617-485 FOAM, AIR SILENCERFOAM, AIR SILENCER
-
151623-171 CLIP, ROUTINGCLIP, ROUTING
