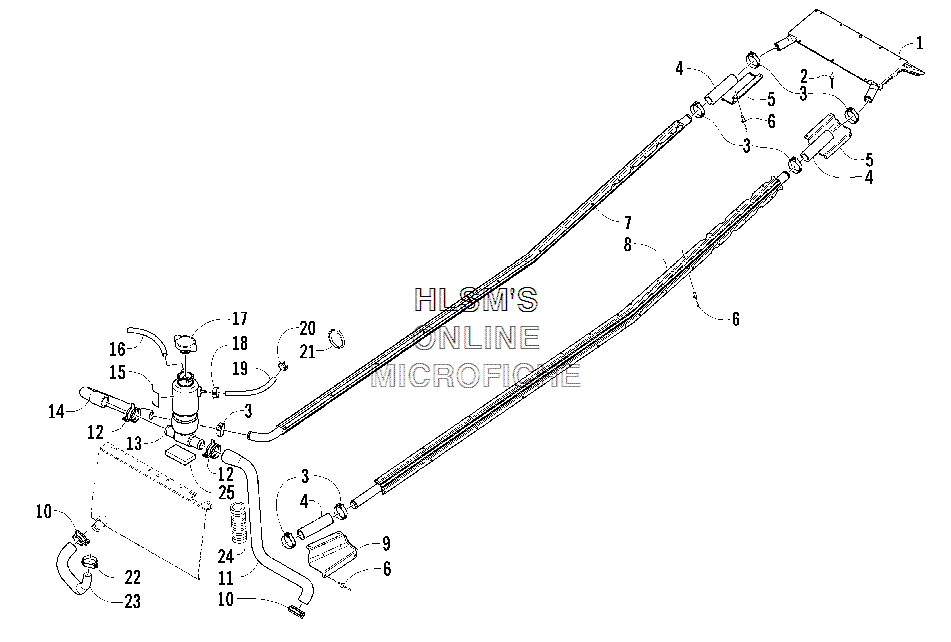

COOLING ASSY. для Arctic Cat M7 EFI Ltd153'' (ORANGE) - 2006 года выпуска
-
№АртикулНазвание
-
12706-656 HEAT EXCHANGER, REARHEAT EXCHANGER, REAR
-
28060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
31623-349 CLAMP, HOSECLAMP, HOSE
-
40610-552 HOSE, COOLANTHOSE, COOLANT
-
53606-564 PROTECTOR, HOSE, REARPROTECTOR, HOSE, REAR
-
68060-484 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
68060-488 RIVET, BLIND-DH SS56 ZINCRIVET, BLIND-DH SS56 ZINC
-
73606-518 HEAT EXCHANGER (RIGHT)HEAT EXCHANGER (RIGHT)
-
83606-519 HEAT EXCHANGER (LEFT)HEAT EXCHANGER (LEFT)
-
93606-565 PROTECTOR, HOSE, FRONTPROTECTOR, HOSE, FRONT
-
101623-229 CLAMP, HOSECLAMP, HOSE
-
110610-625 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
121623-322 CLAMP, HOSECLAMP, HOSE
-
132706-791 TANK, COOLANTTANK, COOLANT
-
140610-553 HOSE, COOLANT TANK/RIGHT HEAT EXCHANGERHOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
-
152611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
160610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
160610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180124-045 CLAMP, HOSECLAMP, HOSE
-
190610-538 HOSE, COOLANT (25 FT)HOSE, COOLANT (25 FT)
-
200623-063 CLAMP, HOSECLAMP, HOSE
-
210123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
221623-350 CLAMP, HOSECLAMP, HOSE
-
230610-626 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
241619-038 PROTECTOR, HOSE, 7 IN.PROTECTOR, HOSE, 7 IN.
-
254606-102 PAD, SUPPORT, COOLANT BOTTLEPAD, SUPPORT, COOLANT BOTTLE
