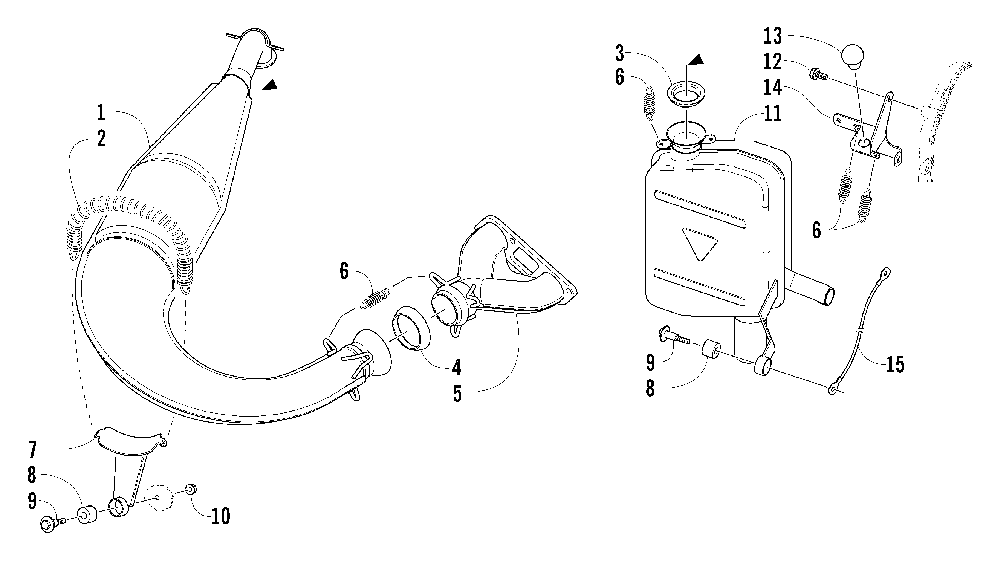

EXHAUST ASSEMBLY для Arctic Cat Panther 370 INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
10712-838 CHAMBER, EXPANSION ASSEMBLYCHAMBER, EXPANSION ASSEMBLY
-
20612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
30612-188 GASKET, EXHAUST TAILPIPEGASKET, EXHAUST TAILPIPE
-
40612-131 GASKET, EXHAUST HEADER JOINTGASKET, EXHAUST HEADER JOINT
-
51712-052 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
60612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
70712-176 BRACKET, MOUNTING EXPANSION CHAMBERBRACKET, MOUNTING EXPANSION CHAMBER
-
80612-107 BUSHING, RESONATOR RUBBERBUSHING, RESONATOR RUBBER
-
90623-856 SCREW, MACHINE HEX SHOULDERSCREW, MACHINE HEX SHOULDER
-
108048-366 NUT, LOCKNUT, LOCK
-
110712-436 RESONATORRESONATOR
-
120623-765 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
130612-111 BUMPER, RUBBER MOLDEDBUMPER, RUBBER MOLDED
-
140712-882 BRACKET, MOUNTING RESONATORBRACKET, MOUNTING RESONATOR
-
150686-126 CABLE, GROUNDCABLE, GROUND
