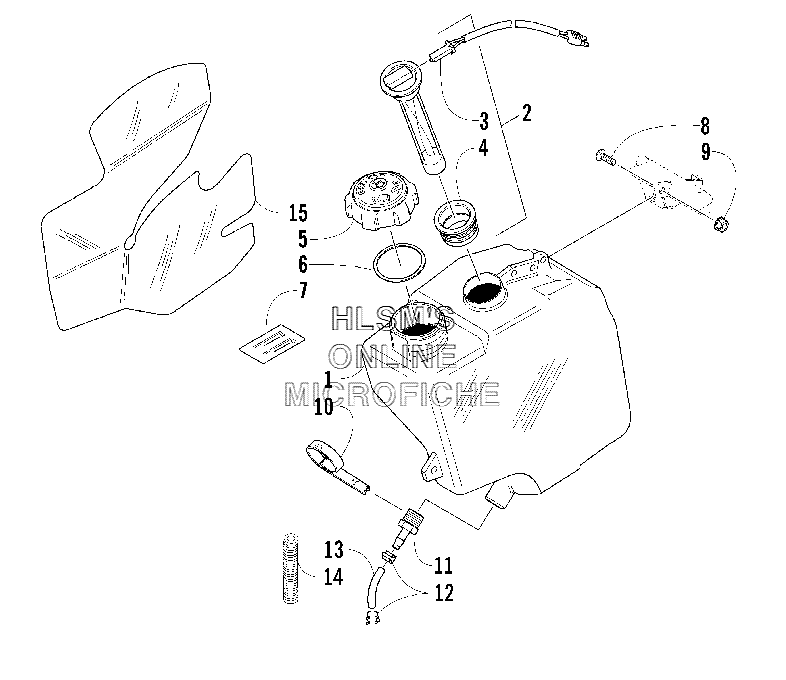

OIL TANK ASSEMBLY для Arctic Cat Panther 570 (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11670-026 TANK, OILTANK, OIL
-
20609-503 SENSOR, LOW OIL, ASSY (INC. 3, 4)SENSOR, LOW OIL, ASSY (INC. 3, 4)
-
30609-518 SWITCH, OIL SENSOR W/HARNESSSWITCH, OIL SENSOR W/HARNESS
-
40609-237 SEAL, GROMMET, OIL SENSORSEAL, GROMMET, OIL SENSOR
-
50670-871 CAP, TANK (INC. 6)CAP, TANK (INC. 6)
-
60109-733 SEAL, TANK CAPSEAL, TANK CAP
-
71611-564 DECAL, OIL TANKDECAL, OIL TANK
-
88017-580 SCREW, MACHINESCREW, MACHINE
-
98048-366 NUT, LOCKNUT, LOCK
-
100670-289 TAPE, TEFLONTAPE, TEFLON
-
110670-733 OUTLET, OIL TANKOUTLET, OIL TANK
-
121623-351 CLAMP, HOSECLAMP, HOSE
-
136101-001 HOSE, OIL LINE (100 FT)HOSE, OIL LINE (100 FT)
-
136101-009 HOSE, OIL LINE (50 FT)HOSE, OIL LINE (50 FT)
-
140716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
-
151670-234 FOIL, PROTECTIVEFOIL, PROTECTIVE
