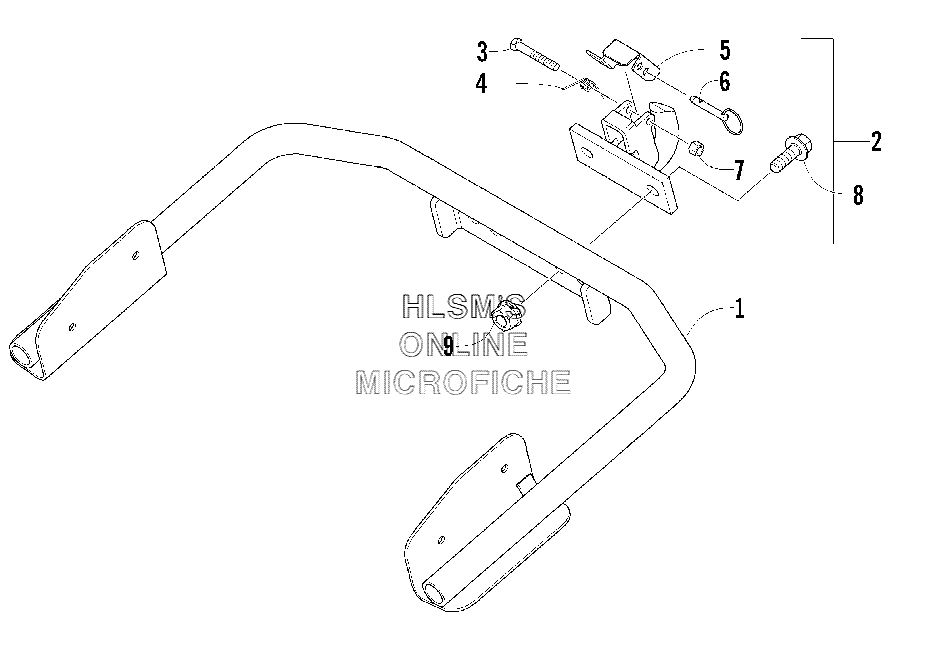

HITCH ASSEMBLY для Arctic Cat Panther 570 INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
12706-759 SUPPORT, HITCHSUPPORT, HITCH
-
20706-727 HITCH, PINTLE, ASSY (INC. 3, 7)HITCH, PINTLE, ASSY (INC. 3, 7)
-
38002-046 SCREW, CAPSCREW, CAP
-
40623-335 SPRING, HITCHSPRING, HITCH
-
52706-229 LATCH, HITCHLATCH, HITCH
-
60623-213 PIN, HITCHPIN, HITCH
-
78040-366 NUT, LOCKNUT, LOCK
-
88020-134 SCREW, CAPSCREW, CAP
-
98048-426 NUT, LOCKNUT, LOCK
