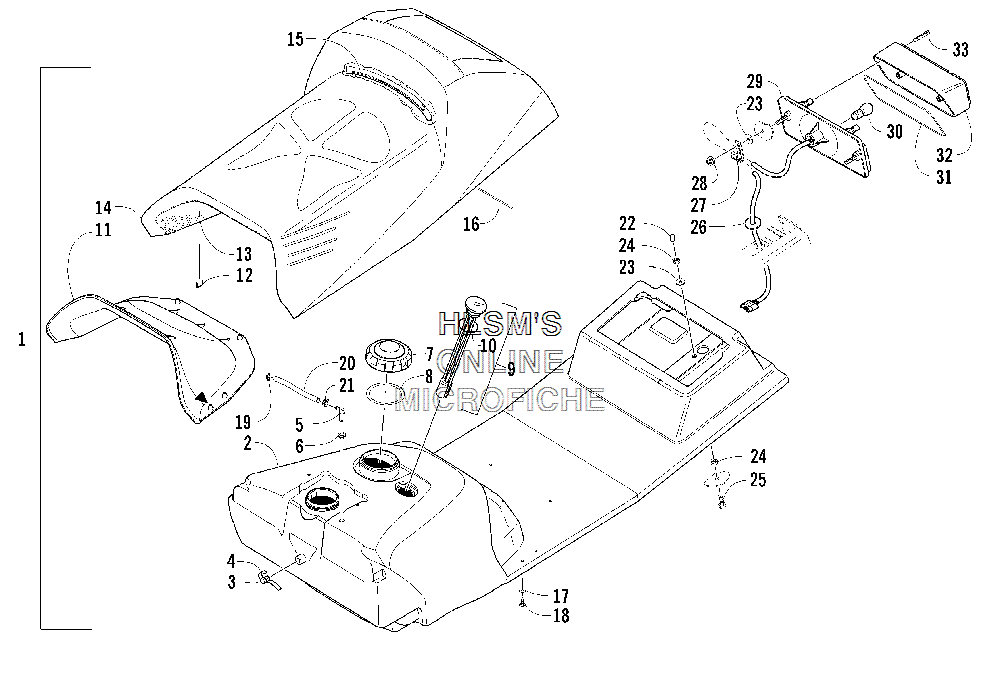

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat Panther 660 TRAIL - 2006 года выпуска
-
№АртикулНазвание
-
12718-004 COMPLETE SEAT ASSEMBLY (INC. 2, 18)COMPLETE SEAT ASSEMBLY (INC. 2, 18)
-
20770-558 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
30670-243 PLUG, GAS TANKPLUG, GAS TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
51670-494 VENT, GAS TANKVENT, GAS TANK
-
61670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
71670-199 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
81670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
91670-241 GAUGE, GAS W/SEAL (INC. 10)GAUGE, GAS W/SEAL (INC. 10)
-
100470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
111606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
120624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
133706-310 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
143706-325 COVER, SEAT (INC. 15)COVER, SEAT (INC. 15)
-
153606-363 WIRE, SEATWIRE, SEAT
-
162606-943 WIRE, SEATWIRE, SEAT
-
178050-217 WASHERWASHER
-
180623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
190623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
206101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
206101-009 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
211623-042 CLAMP, HOSECLAMP, HOSE
-
220623-404 CAP, PROTECTORCAP, PROTECTOR
-
230623-184 WASHERWASHER
-
248048-366 NUT, LOCKNUT, LOCK
-
258020-042 SCREW, CAPSCREW, CAP
-
260617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
273002-964 CLAMP, WIRECLAMP, WIRE
-
280623-038 NUT W/WASHERNUT W/WASHER
-
290609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
300109-460 BULBBULB
-
310609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
320609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
330609-093 SCREW, RETAININGSCREW, RETAINING
