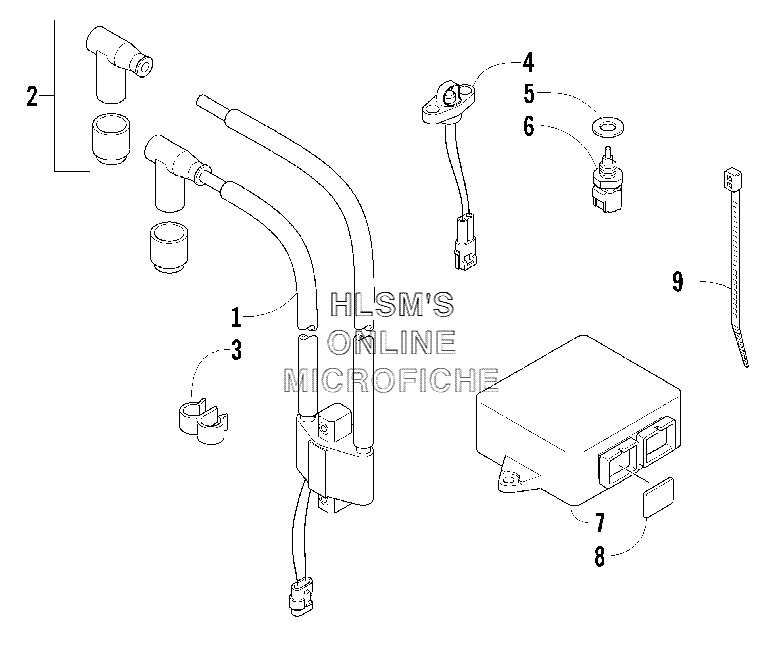

ELECTRICAL для Arctic Cat Sabercat 500 EFI LX (RED) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
13006-692 COIL, IGNITION ASSEMBLYCOIL, IGNITION ASSEMBLY
-
23006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
33005-387 CLAMPCLAMP
-
43006-728 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
63007-060 SENSOR, COOLANTSENSOR, COOLANT
-
73006-994 ECU (CIRCLE)ECU (CIRCLE)
-
73006-995 ECU (SQUARE)ECU (SQUARE)
-
73006-996 ECU (TRIANGLE)ECU (TRIANGLE)
-
83005-908 CAP, RUBBERCAP, RUBBER
-
93005-237 CABLE TIECABLE TIE
