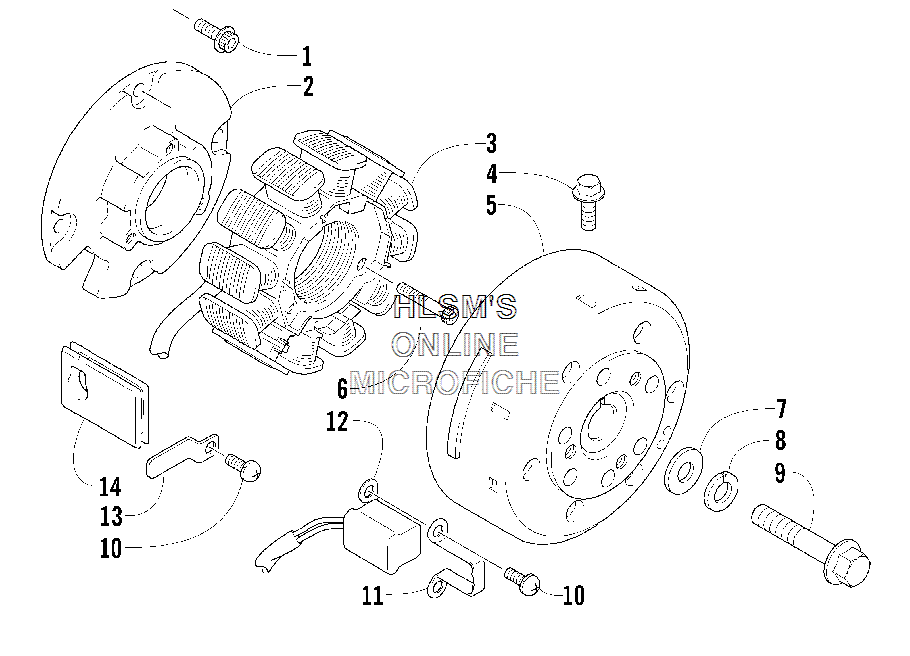

MAGNETO для Arctic Cat Sabercat 600 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13004-378 BOLTBOLT
-
23006-524 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
33007-018 STATORSTATOR
-
43004-338 BOLTBOLT
-
53006-523 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
63005-524 BOLTBOLT
-
73005-987 WASHERWASHER
-
83004-362 WASHER, LOCKWASHER, LOCK
-
93006-476 BOLTBOLT
-
103004-706 SCREWSCREW
-
113003-972 CLAMP, SENSORCLAMP, SENSOR
-
123006-453 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
133005-960 PLATE, STATOR LEAD WIREPLATE, STATOR LEAD WIRE
-
143005-775 GROMMET, STATOR LEAD WIREGROMMET, STATOR LEAD WIRE
