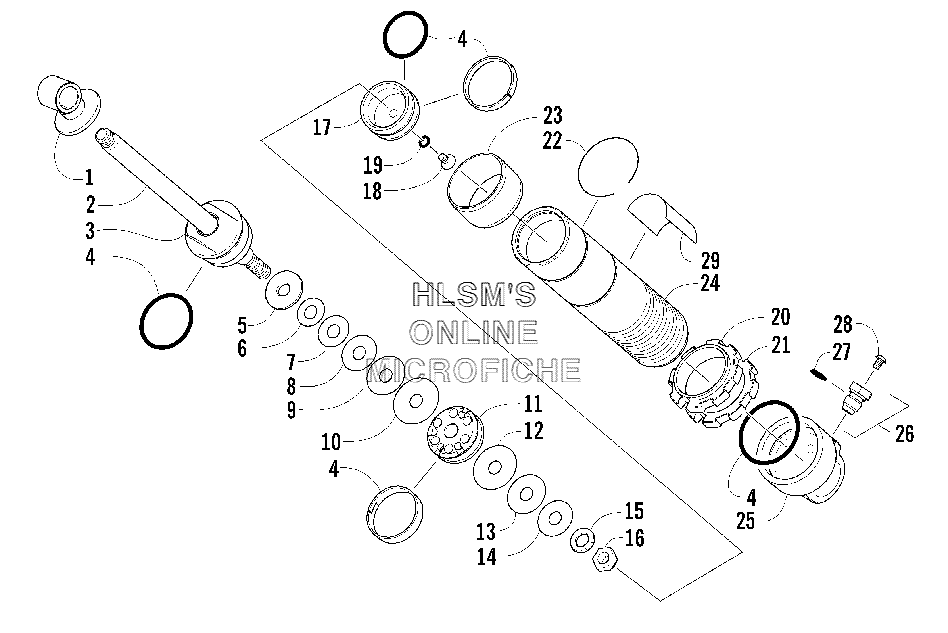

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat T660 Turbo ST (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-883 ROD, SHOCKROD, SHOCK
-
32604-812 CAP, SHOCKCAP, SHOCK
-
42604-815 SEAL/REBUILD KITSEAL/REBUILD KIT
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
70603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
80603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
90603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
100603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
112603-309 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
120603-883 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
130603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
140603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
150603-389 WASHER, BACKUPWASHER, BACKUP
-
160603-301 NUT, LOCKNUT, LOCK
-
172604-816 PISTON, FLOATING, ASSYPISTON, FLOATING, ASSY
-
181604-316 SCREW, RELIEF (INC. 19)SCREW, RELIEF (INC. 19)
-
191604-425 O-RINGO-RING
-
202604-840 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
212604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
222603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
232603-246 SLEEVE, WEARSLEEVE, WEAR
-
242604-882 BODY, SHOCKBODY, SHOCK
-
252604-885 END CAP, SHOCK (INC. 26, 27)END CAP, SHOCK (INC. 26, 27)
-
260703-341 VALVE, PRESSURE (INC. 27)VALVE, PRESSURE (INC. 27)
-
271604-318 O-RING, VALVEO-RING, VALVE
-
280624-097 SCREW, MACHINESCREW, MACHINE
-
292604-897 DECAL, SHOCKDECAL, SHOCK
-
292639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
