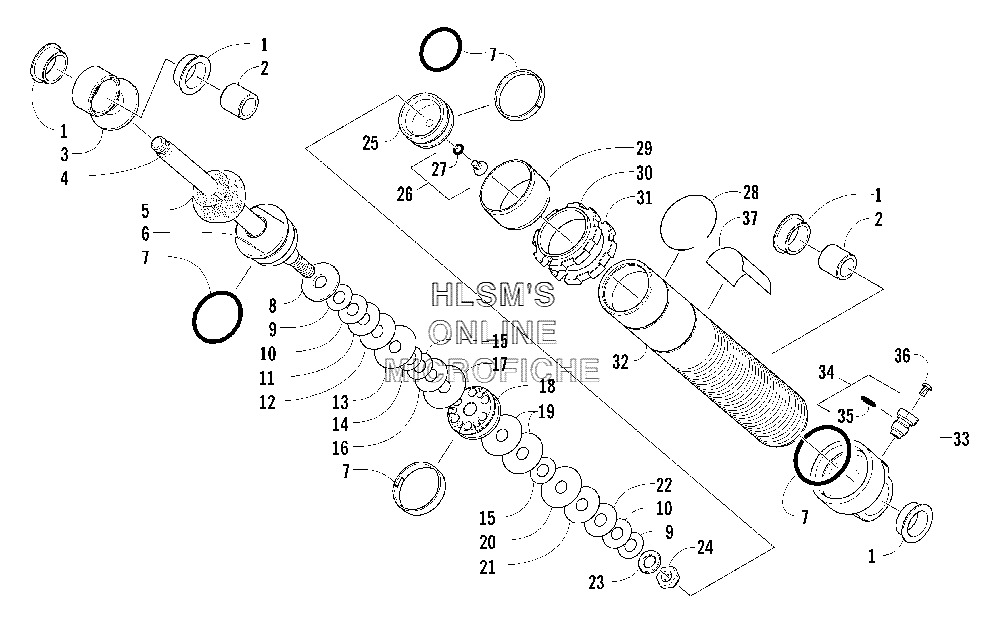

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat T660 Turbo ST (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
10603-955 BUSHING, SHOCKBUSHING, SHOCK
-
21603-209 SLEEVE, EYELETSLEEVE, EYELET
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-416 ROD, SHOCKROD, SHOCK
-
52603-459 BUMPER, SHOCKBUMPER, SHOCK
-
62604-413 CAP, SHOCKCAP, SHOCK
-
72604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
80603-540 WASHER, TOP OUTWASHER, TOP OUT
-
90603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
100603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
110603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
120603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
150603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
160603-339 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
170603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
182603-309 PISTON, 0.120 IN., ORIFICEPISTON, 0.120 IN., ORIFICE
-
190603-345 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
200603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
210603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
220603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUT, LOCKNUT, LOCK
-
252604-816 PISTON, FLOATINGPISTON, FLOATING
-
261604-316 SCREW, RELIEF (INC. 27)SCREW, RELIEF (INC. 27)
-
271604-425 O-RINGO-RING
-
282603-245 RETAINER, SLEEVERETAINER, SLEEVE
-
292603-246 SLEEVE, PROTECTORSLEEVE, PROTECTOR
-
302604-840 NUT, ADJUSTERNUT, ADJUSTER
-
312604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
322603-460 BODY, SHOCKBODY, SHOCK
-
332604-817 END CAP, SHOCK (INC. 34, 35)END CAP, SHOCK (INC. 34, 35)
-
340703-341 VALVE, PRESSURE (INC. 35)VALVE, PRESSURE (INC. 35)
-
351603-318 O-RING, VALVEO-RING, VALVE
-
360624-097 SCREW, VALVESCREW, VALVE
-
372604-897 DECAL, SHOCKDECAL, SHOCK
-
372639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
