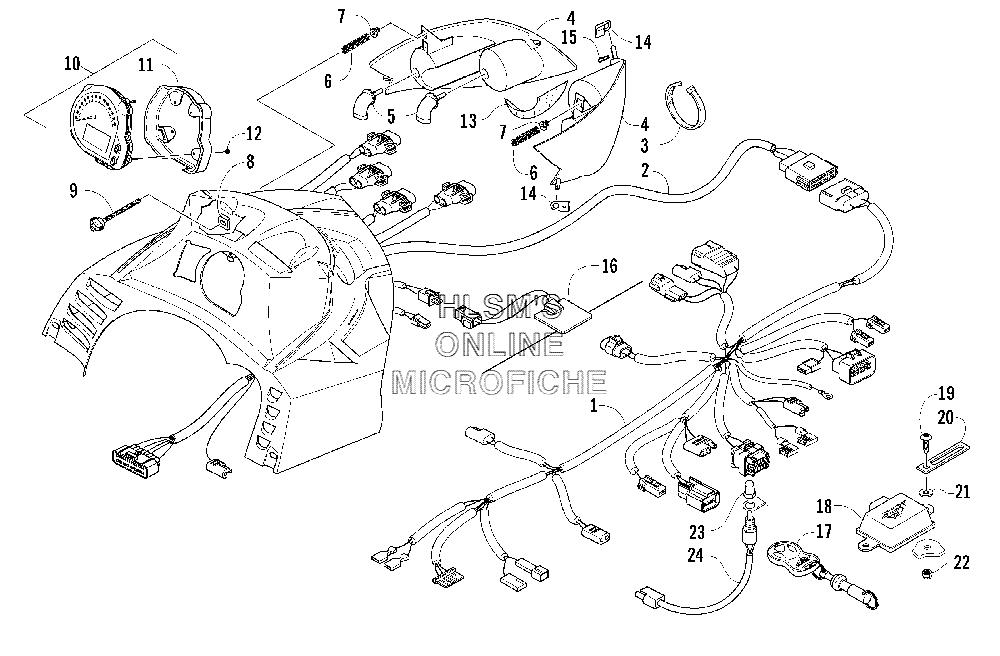

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat T660 Turbo Touring (BLACK) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11686-229 HARNESS, MAINHARNESS, MAIN
-
21686-244 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-189 CLIP, ADJUSTER SCREWCLIP, ADJUSTER SCREW
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-292 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
133606-370 FOIL, HEADLIGHT (RIGHT)FOIL, HEADLIGHT (RIGHT)
-
133606-371 FOIL, HEADLIGHT (LEFT)FOIL, HEADLIGHT (LEFT)
-
141623-202 CLIP, HEADLIGHT (RIGHT)CLIP, HEADLIGHT (RIGHT)
-
141623-201 CLIP, HEADLIGHT (LEFT)CLIP, HEADLIGHT (LEFT)
-
151623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
160630-189 ANTENNA, CONTROL MODULEANTENNA, CONTROL MODULE
-
170630-187 CONTROL, REMOTECONTROL, REMOTE
-
180630-213 MODULE, CONTROL, REMOTE STARTMODULE, CONTROL, REMOTE START
-
198017-397 SCREW, MACHINESCREW, MACHINE
-
203002-964 CLAMP, WIRECLAMP, WIRE
-
210123-802 WASHERWASHER
-
228041-246 NUT, LOCKNUT, LOCK
-
230630-013 BOOT, SWITCHBOOT, SWITCH
-
240630-011 SWITCH, HOODSWITCH, HOOD
