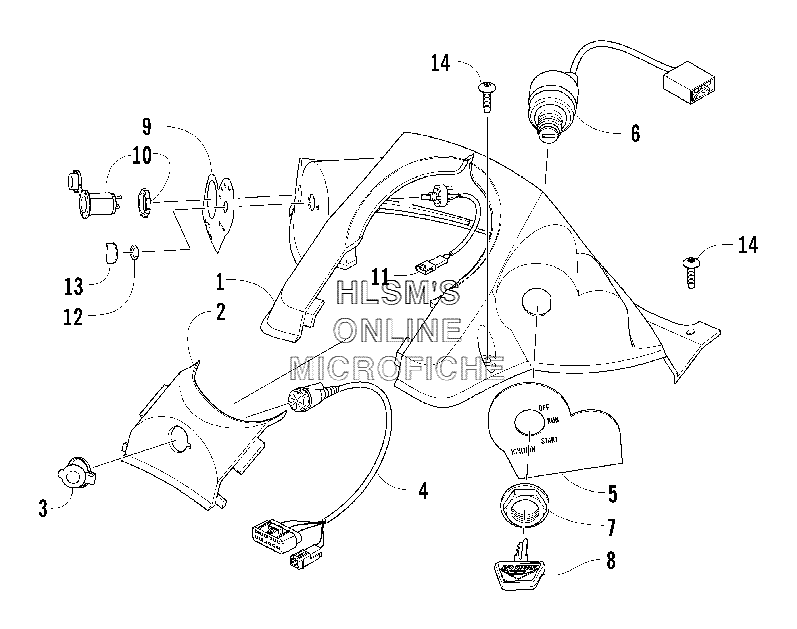

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat T660 Turbo Touring LE (SILVER) - 2006 года выпуска
-
№АртикулНазвание
-
14606-048 CONSOLECONSOLE
-
24606-081 DOOR, CONSOLEDOOR, CONSOLE
-
30609-769 CAP, WEATHER/RADIO INTERFACECAP, WEATHER/RADIO INTERFACE
-
41686-232 HARNESS, RADIOHARNESS, RADIO
-
56611-643 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
60609-698 SWITCH, IGNITION (INC. 7, 8)SWITCH, IGNITION (INC. 7, 8)
-
70609-707 NUT, RETAININGNUT, RETAINING
-
96611-981 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
100641-897 OUTLET, ACCESSORYOUTLET, ACCESSORY
-
111686-285 HARNESS, SWITCH, OPERATOR SEAT HEATER (INC. 12)HARNESS, SWITCH, OPERATOR SEAT HEATER (INC. 12)
-
130609-772 KNOB, SWITCHKNOB, SWITCH
-
141623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
