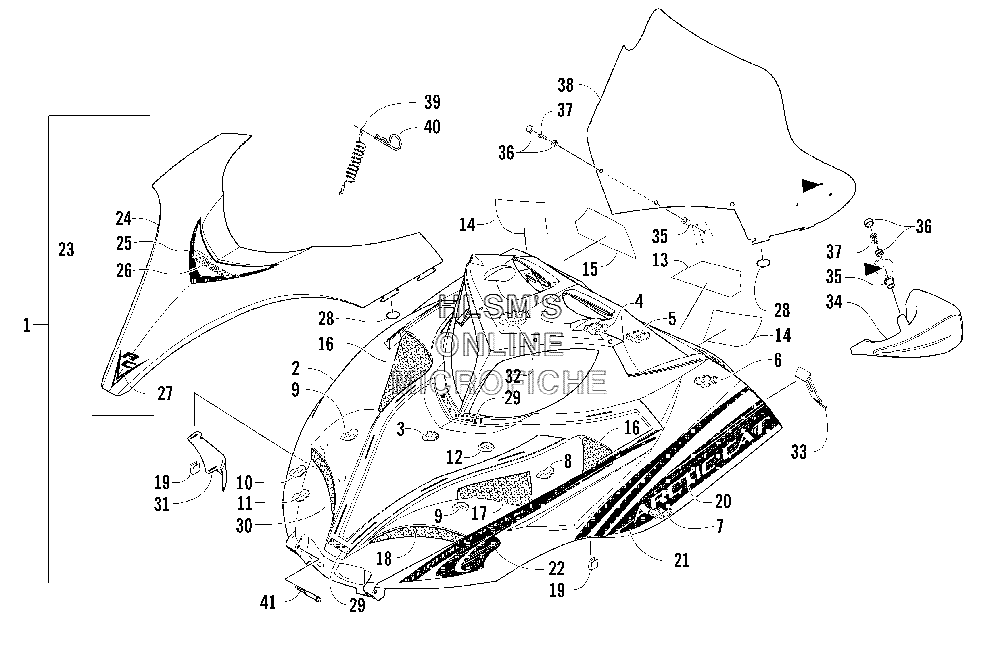

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 Turbo Touring (SILVER) - 2006 года выпуска
-
№АртикулНазвание
-
11718-929 HOOD W/DECALS (INC. 2, 28 AND TWELVE NO. 29)HOOD W/DECALS (INC. 2, 28 AND TWELVE NO. 29)
-
21718-928 HOOD W/O DECALS (INC. 3, 19)HOOD W/O DECALS (INC. 3, 19)
-
30717-183 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40717-186 FOAM, HOOD, GAUGE (RIGHT)FOAM, HOOD, GAUGE (RIGHT)
-
40717-187 FOAM, HOOD, GAUGE (LEFT)FOAM, HOOD, GAUGE (LEFT)
-
50717-190 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
50717-191 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
60717-188 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-189 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
70717-184 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
70717-185 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
83606-375 FOIL, HOOD (SIDE)FOIL, HOOD (SIDE)
-
93606-372 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
93606-373 FOIL, HOOD (UPPER/LEFT)FOIL, HOOD (UPPER/LEFT)
-
102606-556 FOIL, HOODFOIL, HOOD
-
113606-374 FOIL, HOOD (LOWER/RIGHT)FOIL, HOOD (LOWER/RIGHT)
-
123606-376 FOIL, HOOD (UPPER)FOIL, HOOD (UPPER)
-
135611-837 DECAL, WARNING, BREAK (INNER)DECAL, WARNING, BREAK (INNER)
-
145611-840 DECAL, WARNING (ENGLISH)DECAL, WARNING (ENGLISH)
-
145611-841 DECAL, WARNING (FRENCH)DECAL, WARNING (FRENCH)
-
155611-836 DECA(LEFT, REVERSEDECA(LEFT, REVERSE
-
163606-236 SCREEN, HOOD (REAR/RIGHT)SCREEN, HOOD (REAR/RIGHT)
-
163606-237 SCREEN, HOOD (REAR/LEFT)SCREEN, HOOD (REAR/LEFT)
-
174606-161 SCREEN, HOOD (MIDDLE)SCREEN, HOOD (MIDDLE)
-
183606-235 SCREEN, HOOD (FRONT/LEFT)SCREEN, HOOD (FRONT/LEFT)
-
190123-987 CLIP, RETAININGCLIP, RETAINING
-
206611-805 EMBLEM, HOODEMBLEM, HOOD
-
216611-794 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
216611-795 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
226611-792 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
226611-793 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
231718-863 COVER, HOOD W/DECALS (INC. 24, 27)COVER, HOOD W/DECALS (INC. 24, 27)
-
244606-070 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
256611-802 DECAL, CRESTDECAL, CREST
-
266611-822 EMBLEM, COVER, "T660"EMBLEM, COVER, "T660"
-
276611-261 EMBLEM, COVEREMBLEM, COVER
-
280616-032 O-RINGO-RING
-
290619-898 TAPE, FOAM, 1 FTTAPE, FOAM, 1 FT
-
303606-234 SCREEN, HOOD (FRONT/RIGHT)SCREEN, HOOD (FRONT/RIGHT)
-
311670-550 DEFLECTOR, AIR INTAKEDEFLECTOR, AIR INTAKE
-
320717-192 FOAM, HOOD (UPPER/MIDDLE)FOAM, HOOD (UPPER/MIDDLE)
-
331606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
342639-477 MIRROR, KIT (INC. SIX NO. 35, 37)MIRROR, KIT (INC. SIX NO. 35, 37)
-
350623-845 NUT, EXPANSIONNUT, EXPANSION
-
360124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
370623-902 SCREW, MACHINESCREW, MACHINE
-
384606-078 WINDSHIELDWINDSHIELD
-
392606-247 CABLE, HOODCABLE, HOOD
-
400623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
411623-164 SCREW, SHOULDERSCREW, SHOULDER
