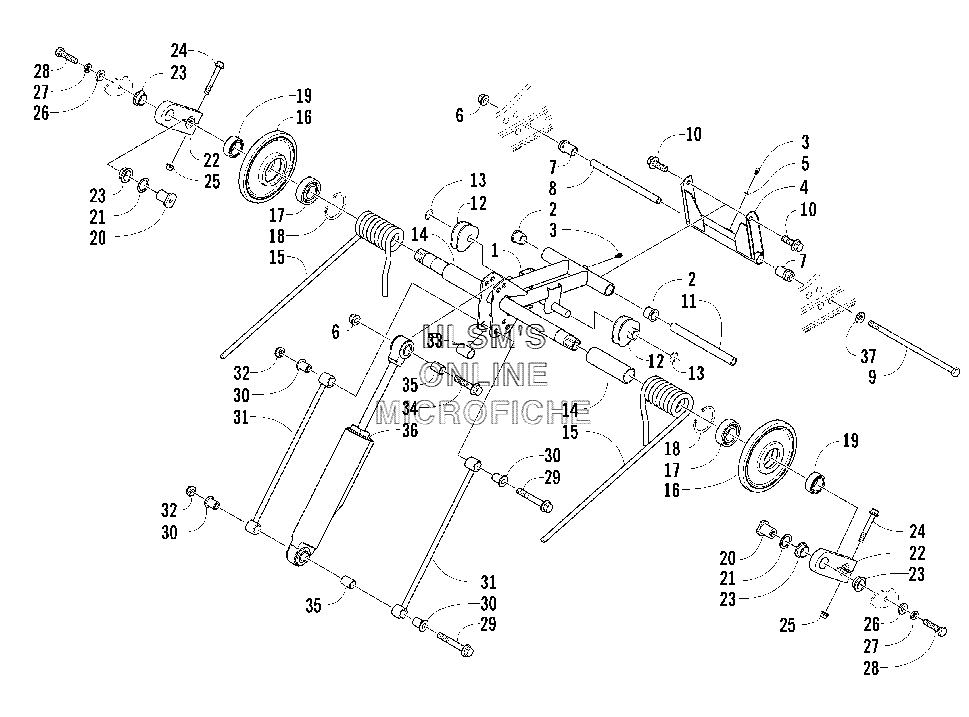

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat T660 Turbo Trail (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11704-508 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHINGBUSHING
-
31623-010 FITTING, GREASEFITTING, GREASE
-
41704-019 ARM (REAR) (INC. ONE NO. 3 AND 5)ARM (REAR) (INC. ONE NO. 3 AND 5)
-
51623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
68047-486 NUT, LOCKNUT, LOCK
-
72604-664 AXLE, SERRATEDAXLE, SERRATED
-
82604-663 TUBE, AXLETUBE, AXLE
-
91623-037 SCREW, CAPSCREW, CAP
-
108020-220 SCREW, CAPSCREW, CAP
-
111604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
121604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
121604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
130623-138 RING, RETAINERRING, RETAINER
-
140114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
151704-044 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
151704-045 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
161604-690 WHEEL, IDLER (INC. 17, 18)WHEEL, IDLER (INC. 17, 18)
-
170107-598 BEARINGBEARING
-
180123-798 RING, RETAININGRING, RETAINING
-
191604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
201604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
211604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
220704-981 ARM, PIVOT IDLER (INC. 23, 25)ARM, PIVOT IDLER (INC. 23, 25)
-
231604-202 BUSHING, FLAREDBUSHING, FLARED
-
248020-138 SCREW, CAPSCREW, CAP
-
258048-426 NUT, LOCKNUT, LOCK
-
260623-044 WASHERWASHER
-
278051-277 WASHER, LOCKWASHER, LOCK
-
288002-224 SCREW, CAPSCREW, CAP
-
298020-233 SCREW, CAPSCREW, CAP
-
301604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
310704-350 LINK, CARRIAGE (INNER)LINK, CARRIAGE (INNER)
-
328041-486 NUT, LOCKNUT, LOCK
-
330704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
348020-226 SCREW, CAPSCREW, CAP
-
351604-139 SLEEVESLEEVE
-
361704-138 SHOCK ABSORBER, ARM (REAR)SHOCK ABSORBER, ARM (REAR)
-
378050-272 WASHERWASHER
