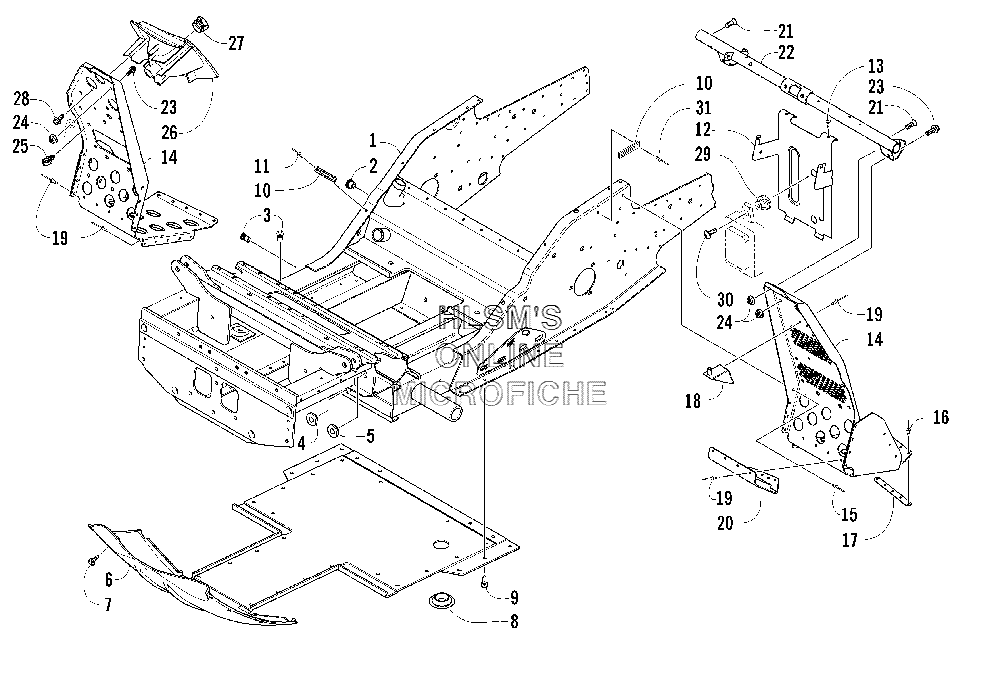

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat T660 Turbo Trail LE (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10707-821 CHASSIS ASSY (INC. 2, 5)CHASSIS ASSY (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT, A, ARM MOUNT (LOWER)INSERT, A, ARM MOUNT (LOWER)
-
50607-421 INSERT, A, ARM MOUNT (UPPER)INSERT, A, ARM MOUNT (UPPER)
-
62706-516 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
71623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
82606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
90623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
118060-506 RIVETRIVET
-
120745-215 BRACKET, MOUNTING, ECUBRACKET, MOUNTING, ECU
-
131623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
142706-919 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
142706-113 FOOTREST (LEFT)FOOTREST (LEFT)
-
150623-341 RIVETRIVET
-
160623-282 RIVETRIVET
-
172706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
180705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
190623-166 RIVETRIVET
-
201706-886 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
201706-887 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
218019-614 SCREW, MACHINESCREW, MACHINE
-
221705-094 SUPPORT, STEERINGSUPPORT, STEERING
-
238020-040 SCREW, CAPSCREW, CAP
-
248048-366 NUT, LOCKNUT, LOCK
-
250623-101 CLIP, ROUTINGCLIP, ROUTING
-
261706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
270623-831 PLUG, RECOIL CUPPLUG, RECOIL CUP
-
280623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290645-359 MOUNT, ECUMOUNT, ECU
-
308476-625 SCREW, MACHINESCREW, MACHINE
-
318060-706 RIVETRIVET
