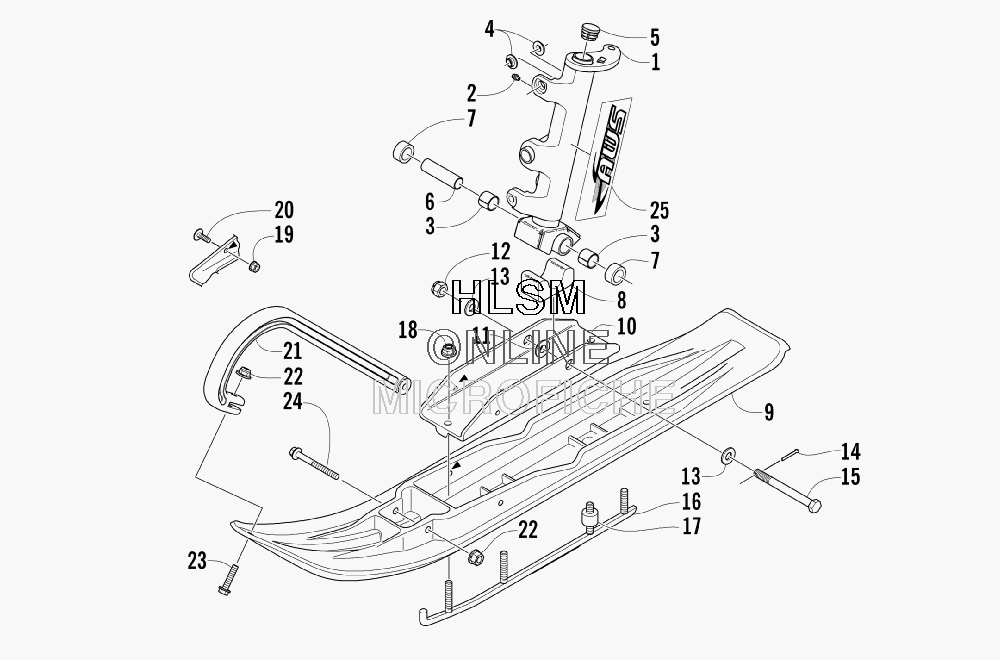

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT 570 LONG TRACK (INTERNATIONAL) - 2007 года выпуска
-
№АртикулНазвание
-
11703-958 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 2-4)SPINDLE, STEERING - RIGHT - PLATINUM (INC. 2-4)
-
11703-959 SPINDLE, STEERING - LEFT - PLATINUM (INC. 2-4)SPINDLE, STEERING - LEFT - PLATINUM (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30603-158 ...BEARING...BEARING
-
40603-647 ...INSERT, SPINDLE...INSERT, SPINDLE
-
50623-831 ...CAP, SPINDLE...CAP, SPINDLE
-
62603-548 ...AXLE, SPINDLE...AXLE, SPINDLE
-
71603-908 ...SPACER, SKI-STANCE...SPACER, SKI-STANCE
-
81603-960 ...DAMPER, SKI...DAMPER, SKI
-
90703-492 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
100703-269 SADDLE, SKI (INC. 11)SADDLE, SKI (INC. 11)
-
110603-621 ...INSERT, SKI SADDLE...INSERT, SKI SADDLE
-
120123-296 NUT, LOCKNUT, LOCK
-
130623-728 WASHERWASHER
-
140123-458 PIN, COTTERPIN, COTTER
-
150623-552 SCREW, CAPSCREW, CAP
-
161703-003 WEARBARWEARBAR
-
170603-616 SPACERSPACER
-
188047-486 NUT, LOCKNUT, LOCK
-
198047-366 NUT, LOCKNUT, LOCK
-
208017-581 SCREW, MACHINESCREW, MACHINE
-
210603-624 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
228047-426 NUT, LOCKNUT, LOCK
-
238020-135 SCREW, CAPSCREW, CAP
-
248020-143 SCREW, CAPSCREW, CAP
-
257611-394 DECAL, "AWS" - SPINDLE - RIGHTDECAL, "AWS" - SPINDLE - RIGHT
-
257611-395 DECAL, "AWS" - SPINDLE - LEFTDECAL, "AWS" - SPINDLE - LEFT
