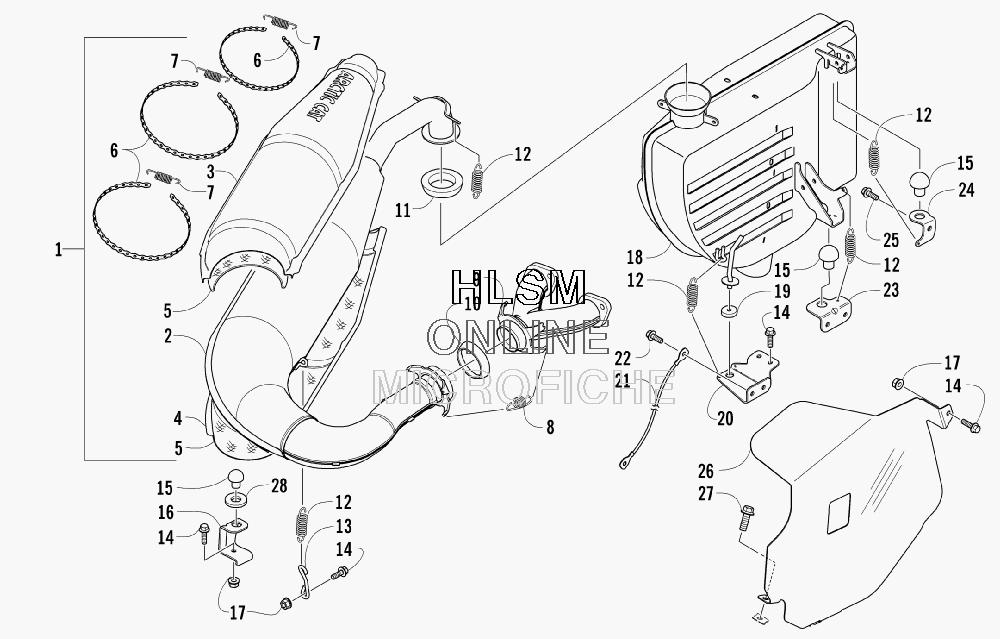

EXHAUST ASSEMBLY для Arctic Cat BEARCAT 570 LONG TRACK - 2007 года выпуска
-
№АртикулНазвание
-
11712-341 EXPANSION CHAMBER ASSEMBLY (INC. 2-7)EXPANSION CHAMBER ASSEMBLY (INC. 2-7)
-
21712-340 ...CHAMBER, EXPANSION...CHAMBER, EXPANSION
-
32612-137 ...COVER, UPPER...COVER, UPPER
-
42612-138 ...COVER, LOWER...COVER, LOWER
-
52612-139 ...INSULATION...INSULATION
-
60624-552 ...TIE, PERFORATED BAND - 5 FT...TIE, PERFORATED BAND - 5 FT
-
60624-541 ...TIE, PERFORATED BAND - 25 FT...TIE, PERFORATED BAND - 25 FT
-
71612-178 ...SPRING, EXHAUST...SPRING, EXHAUST
-
82612-257 SPRING, EXTENSIONSPRING, EXTENSION
-
91712-336 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
111612-323 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
120612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
130712-913 BRACKET, WIRE FORMBRACKET, WIRE FORM
-
148020-040 SCREW, CAPSCREW, CAP
-
150612-111 BUMPER, RUBBERBUMPER, RUBBER
-
161612-508 BRACKET, MOUNTING - EXPANSION CHAMBERBRACKET, MOUNTING - EXPANSION CHAMBER
-
178047-366 NUT, LOCKNUT, LOCK
-
181712-372 RESONATORRESONATOR
-
191612-319 BUSHING, STEM - RESONATOR MOUNTINGBUSHING, STEM - RESONATOR MOUNTING
-
200712-834 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
210686-126 WIRE, GROUNDWIRE, GROUND
-
221623-544 SCREW, CAPSCREW, CAP
-
230712-992 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
240712-993 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
258020-134 SCREW, CAPSCREW, CAP
-
263706-183 SHIELD, HEATSHIELD, HEAT
-
270623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280623-220 WASHERWASHER
