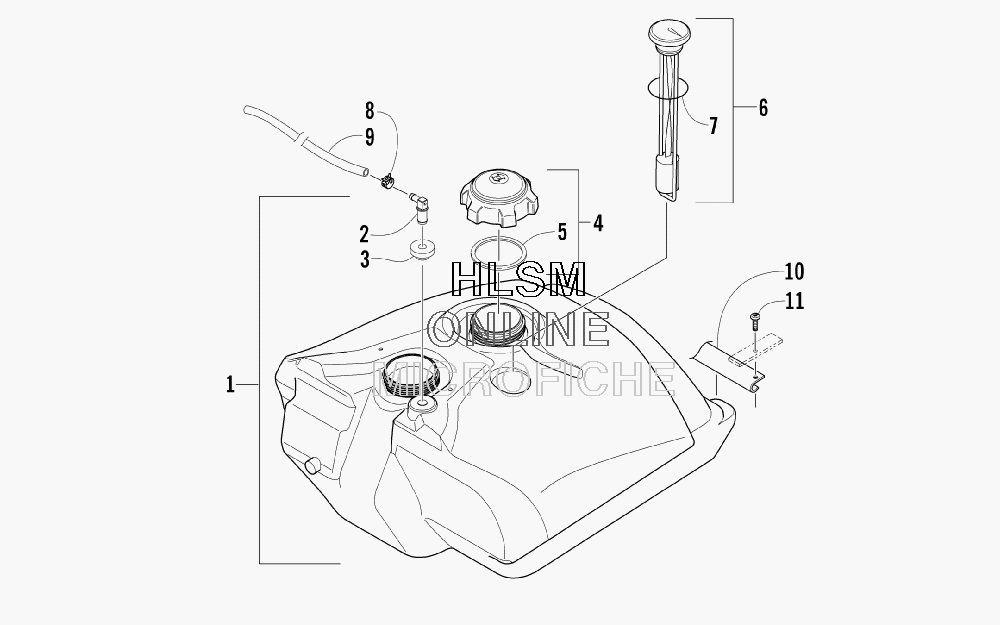

GAS TANK ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK TURBO - 2007 года выпуска
-
№АртикулНазвание
-
10770-737 TANK, GAS (INC. 2-7)TANK, GAS (INC. 2-7)
-
21670-494 ...VENT, GAS TANK...VENT, GAS TANK
-
31670-325 ...GROMMET...GROMMET
-
41670-199 ...CAP, GAS TANK (INC. 5)...CAP, GAS TANK (INC. 5)
-
51670-228 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
61670-524 ...GAUGE, GAS W/SEAL (INC. 7)...GAUGE, GAS W/SEAL (INC. 7)
-
70470-400 ......SEAL, GAS GAUGE......SEAL, GAS GAUGE
-
81623-042 CLAMP, HOSECLAMP, HOSE
-
96101-001 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
96101-009 HOSE, VENT - 50 FTHOSE, VENT - 50 FT
-
103706-138 BRACKET, HOLD-DOWN - GAS TANKBRACKET, HOLD-DOWN - GAS TANK
-
111623-175 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
