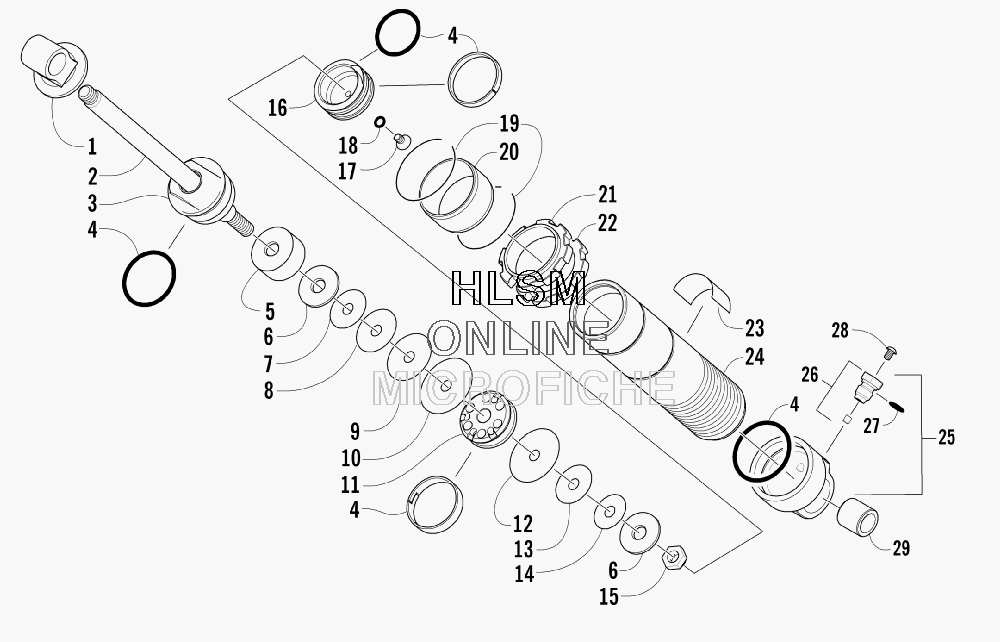

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 1000 EFI SNO PRO - 2007 года выпуска
-
№АртикулНазвание
-
1704-482 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-872 ROD, SHOCKROD, SHOCK
-
32604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
52603-194 SPACERSPACER
-
60603-540 WASHER, TOP OUTWASHER, TOP OUT
-
70603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-888 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
100603-890 VALVE, 1.300 X 0.015 IN.VALVE, 1.300 X 0.015 IN.
-
112604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
140603-333 VALVE, 0.800 X 0.006 IN.VALVE, 0.800 X 0.006 IN.
-
150603-301 NUT, LOCKNUT, LOCK
-
162604-816 PISTON, FLOATINGPISTON, FLOATING
-
171604-316 SCREW, RELIEF (INC. 18)SCREW, RELIEF (INC. 18)
-
181604-425 ...O-RING...O-RING
-
192603-245 RING, RETAININGRING, RETAINING
-
202603-246 GUIDE, SPRINGGUIDE, SPRING
-
212604-840 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
222604-841 NUT, LOCKING - SPRING ADJUSTER NUTNUT, LOCKING - SPRING ADJUSTER NUT
-
232603-475 DECAL, SHOCKDECAL, SHOCK
-
242604-873 BODY, SHOCKBODY, SHOCK
-
252604-817 END CAP, SHOCK - ASSEMBLY (INC. 26-27)END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
260703-341 ...VALVE, PRESSURE (INC. 27)...VALVE, PRESSURE (INC. 27)
-
271604-318 ......O-RING......O-RING
-
280624-097 SCREW, VALVESCREW, VALVE
-
292604-415 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
*4639-368 OIL, SHOCK - 1 QT (NOT ILLUSTRATED)OIL, SHOCK - 1 QT (NOT ILLUSTRATED)
