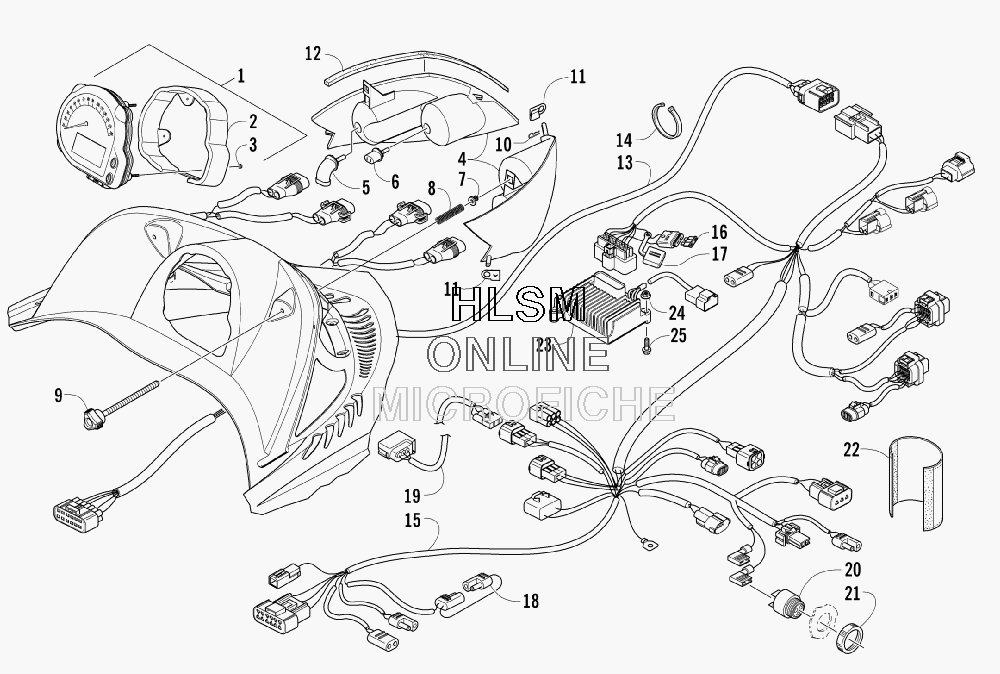

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat CROSSFIRE 500 EFI (BLACK) (INTERNATIONAL) - 2007 года выпуска
-
№АртикулНазвание
-
10620-304 TACHOMETER/SPEEDOMETER (INC. 2-3)TACHOMETER/SPEEDOMETER (INC. 2-3)
-
20620-281 ...BRACKET, RETAINING...BRACKET, RETAINING
-
30620-280 ...NUT W/WASHER...NUT W/WASHER
-
40609-694 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5-6)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 5-6)
-
40609-695 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5-6)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 5-6)
-
50609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
60609-693 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
71623-025 INSERTINSERT
-
80623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
101623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
111623-272 CLIP - RIGHTCLIP - RIGHT
-
111623-273 CLIP - LEFTCLIP - LEFT
-
120617-501 FOAM, HOOD/HEADLIGHTFOAM, HOOD/HEADLIGHT
-
131686-330 HARNESS, HOODHARNESS, HOOD
-
140123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
151686-320 HARNESS, MAIN (INC. 16-18)HARNESS, MAIN (INC. 16-18)
-
160630-024 ...FUSE, 15 AMP...FUSE, 15 AMP
-
170630-102 ...COVER, FUSE...COVER, FUSE
-
180486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
191686-160 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
200630-010 ALARM, REVERSE (INC. 21)ALARM, REVERSE (INC. 21)
-
210630-017 ...RING, RETAINING...RING, RETAINING
-
223706-761 WRAPWRAP
-
230630-218 UNIT, CHASSIS CONTROLUNIT, CHASSIS CONTROL
-
248047-366 NUT, LOCKNUT, LOCK
-
258017-584 SCREW, CAPSCREW, CAP
